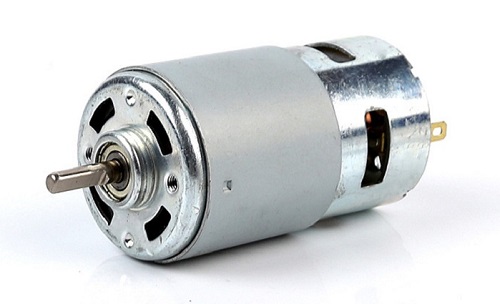

RS-790/795SH Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
RS-790/795 |
Load current |
1.39A |
|
Load power |
25.2W |
Load volt |
24V |
Size |
Φ42.2X75MM |
|
Load speed |
5752RPM |
Load Torque |
410G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
3.0-36V |
Efficiency |
73% |

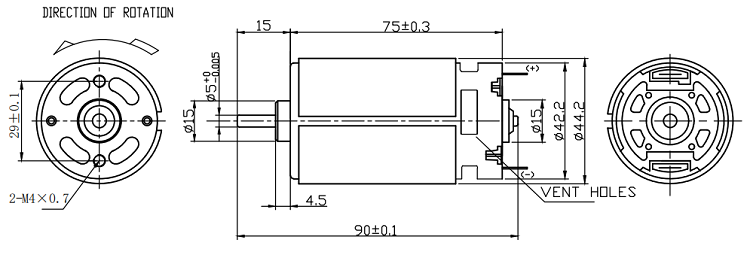

RS-790/795SH Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| RS-790SH-3188 | 31.0 | 5900 | 0.18 | 5169 | 526 | 1.27 | 73.1 | 4249 |
9.0 |
| RS-790SH-3760 | 24.0 | 6500 | 0.18 | 5752 | 410 | 1.39 | 25.2 | 3558 | 10.6 |
| RS-790SH-8018 | 12.0 | 17500 | 2.2 | 15298 | 823 | 15.3 | 135.2 | 6612 | 106 |
| RS-795SH-7006 | 12.0 | 25000 |
4.01 |
21253 | 815 | 22.7 | 185.2 | 5439 |
129 |
| RS-795SH-4577 | 12.0 | 4200 | 0.35 | 3609 | 507 | 2.13 | 18.7 | 3600 | 13.0 |
| RS-795SH-5533 | 12.0 | 5250 | 0.33 | 4740 | 556 | 3.08 | 27.1 | 5746 | 28.8 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
RS-790/795SH Application
Household Appliances: Air freshener, Smart vacuum cleaner, Soap dispenser, Dryer,Rice cooker.
Hair Care: Hair dryer, Electric hair clipper, massage instrument.
Office Equipment: Printer, Projector, Counting Machine，Shredder.
Industrial Equipment: Water,electrical and gas valve, Air switch, Water ump, Air pump, Electric drill.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
