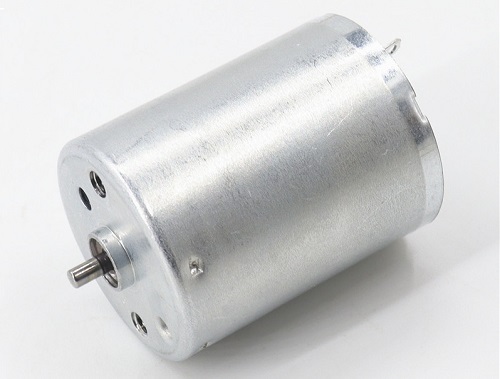

RF/RK-370CA Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
RF/RK-370CA |
Load current |
0.17A |
|
Load power |
0.22W |
Load volt |
12V |
Size |
Φ24.4X30.8MM |
|
Load speed |
4300RPM |
Load Torque |
40G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
3.0-24V |
Efficiency |
53% |

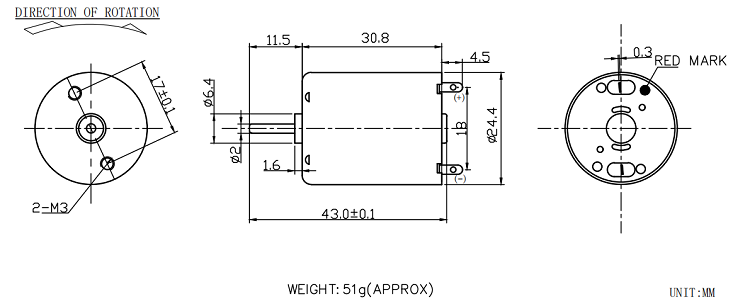

RF/RK-370CA Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| RF-370CA-01 | 12 | 5600 | 0.02 | 4300 | 40 | 0.17 | 0.22 | 184 |
0.92 |
| RF-370CA-02 | 12 | 5000 | 0.01 | 3800 | 40 | 0.15 | 0.16 | 178 | 0.76 |
| RF-370CA-03 | 14.4 | 4500 | 0.02 | 3600 | 40 | 0.13 | 0.26 | 244 | 0.77 |
| RK-370CA-04 | 6.0 | 6000 | 0.05 | 4500 | 30 | 0.34 | 0.30 | 128 | 0.85 |
| RK-370CA-05 | 9.0 | 10000 | 0.12 | 7600 | 75 | 0.93 | 0.99 | 332 | 2.1 |
| RK-370CA-06 | 24 | 7000 | 0.02 | 5300 | 50 | 0.16 | 0.41 | 215 | 0.68 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
RF/RK-370CA Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
