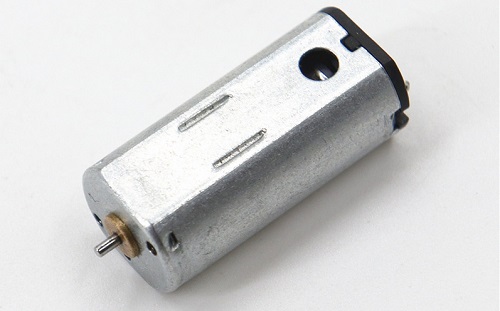

FF-N50VA Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
FF-N50 VA |
Load current |
920mA |
|
Load power |
4.9W |
Load volt |
7.4V |
Size |
Φ12X10X25MM |
|
Load speed |
25800RPM |
Load Torque |
18.6G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
Smart door lock |
||
|
Volt range |
1.5-12V |
Efficiency |
65% |

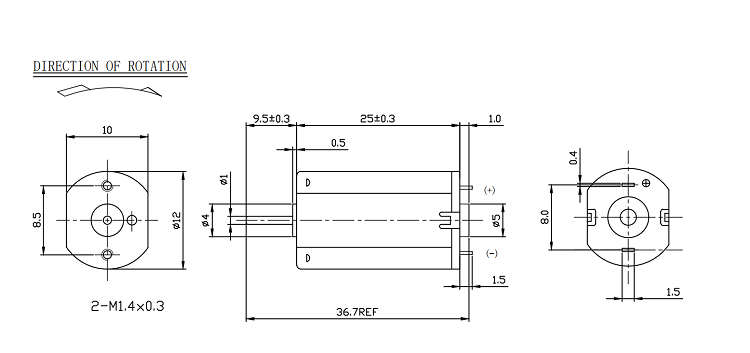

FF-N50VA Outline
| Motor Model |
Rated Voltage |
No-load Speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | mA | rpm | g.cm | A | W | g.cm | A | |
| FF-N50VA-1859 | 7.4 | 30800 | 180 | 25800 | 18.6 | 0.92 | 4.94 | 115 |
4.8 |
| FF-N50VA-2628 | 3.7 | 32900 | 400 | 27400 | 16.8 | 1.97 | 4.72 | 100 | 9.8 |
| FF-N50VA-2145 | 7.4 | 40300 | 190 | 35000 | 20.2 | 1.30 | 7.33 | 160 |
9.0 |
Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
FF-N50VA Application,
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
