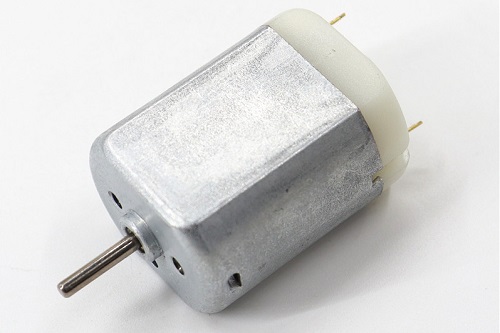

FA/FT-280 Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
FA/FT-280 |
Load current |
0.89A |
|
Load power |
1.65W |
Load volt |
3.0V |
Size |
Φ24X18.3X30.5MM |
|
Load speed |
8820RPM |
Load Torque |
18.3G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
1.5-24V |
Efficiency |
43% |

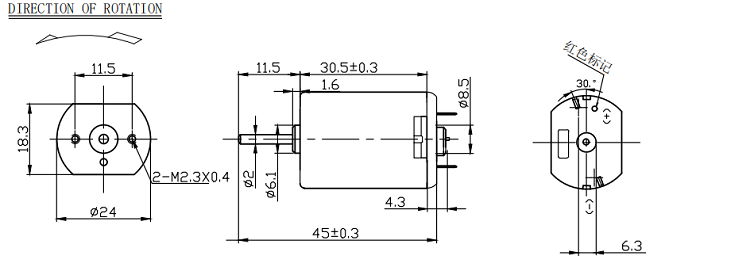

FA/FT-280 Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| FA-280SA-2865 | 3.0 | 10500 | 0.17 | 8820 | 18.3 | 0.89 | 1.65 | 114 |
4.68 |
| FA-280SA-20120 | 3.0 | 5800 | 0.09 | 4620 | 13.0 | 0.35 | 0.60 | 64 | 1.35 |
| FA-280-16245 | 12.0 | 7300 | 0.06 | 6027 | 34.6 | 0.29 | 2.15 | 198 | 1.36 |
| FT-280SA-4525 | 1.2 | 8670 |
0.73 |
6560 | 17.7 | 2.24 | 1.3 | 98 |
8.43 |
| FT-280RA-2485 | 3.0 | 8000 | 0.13 | 6600 | 15.7 | 0.61 | 1.06 | 90 | 2.9 |
| FT-280-4030 | 1.5 | 7800 | 0.37 | 6540 | 23.4 | 1.92 | 1.57 | 145 | 10 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
FA/FT-280 Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
