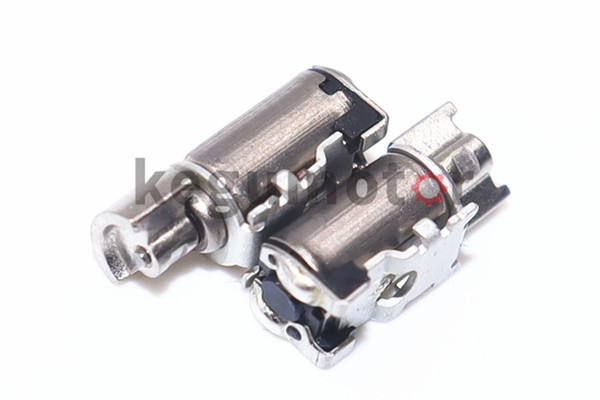

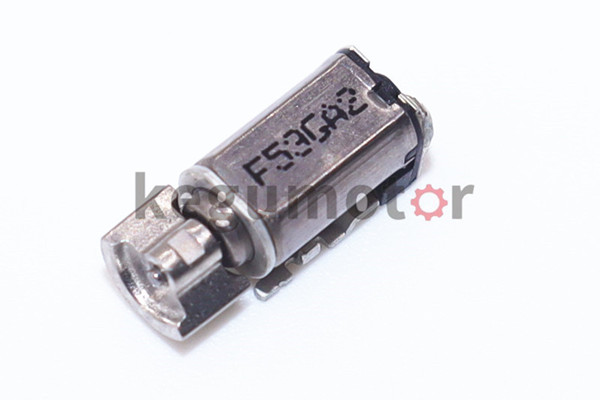

SMD/SMT Series Reflow Solderable Vibration Motors Photo

Smallest Vibration Motor Model KG-0610H Data Sheet

This specification provided by Kegumotor is applied to model KG-3610H(GS-3211) ylindrical type DC core vibrator which is used for cellular phone and other handy communication tools.

Operating, storage and shipping conditions

No Item Specifications
2-1 Rated voltage 2.7V
2-2 Operating voltage range 2.3-3.6V
2-3 Motor position All position
2-4 Rated Load Counterweight (R2.1*L2.8)
2-5 Rotation CW
2-6 Operating environment -20℃~+70℃(0~95%RH)
2-7 Storage environment -40℃~+85℃(0~95%RH)

3. Measuring conditions

No Item Specifications
3-1 Normal temperature 20℃±2℃
3-2 Normal humidity 65±5%
3-3 Temperature for reference 5℃~35℃
3-4 Humidity for reference 30%~90%
3-5 Vibrator position when testing Vibrator shaft horizontal

4. Mechanical characteristics

No Item Specifications Conditions & Remarks
4-1 Appearance Visual No scar, rust, stain and dent
4-2 Weight 0.6 g
4-3 Rated Load Counterweight R2.1*L2.8, density 17g/cc min
4-4 Bearable axis pull strength 40N Min Slowly apply an increasing axis pull force on
the counterweight until destruction
4-5 Axial play of shaft 0.3 mm Max
4-6 Vibration acceleration 0.7Gp-p @10000rpm Detailed test method see figure 1
4-7 Rise time 100 ms Max Rising to 90% of nominal RPM @ +2.0V
4-8 Fall time 100 ms Max Falling to 10% of nominal RPM @ 0.0V
Mechanical noise
50dB-A Max (Background noise: 25dB-A Max)
Measure at rated voltage and rated load (counterweight), according to shaft direction the distance between microphone and motor is
10cm. The noise meter using A weighted.
Vibrator Microphone
Fix jig
Noise level meter
10cm (JIS-A)

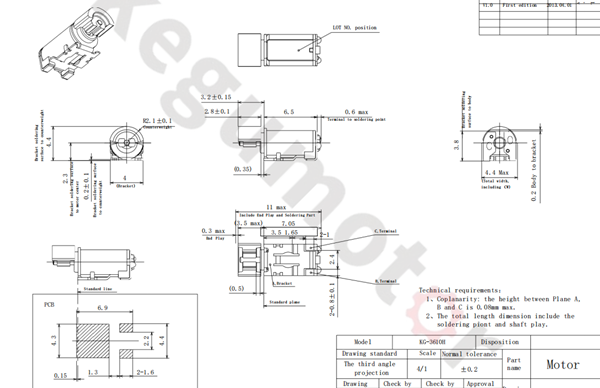

4mm Coreless ERM Pager Vibration Motor Outline Drawing

Eccentric Rotating Mass Vibration Motor Applications


  • Used in numerous material handling devices like conveyors, feeders, and vibrating screens;

  • Used in hoppers, silos to stop blocking of the flow of material;

  • Used in compacting machines & foundry shakeouts for quick & proficient operation.

Eccentric rotating mass vibration motor is a simple device. Whilst they are not incredibly high-tech, they are used in automobiles to provide haptic feedback in touch screen displays and dashboards, including as central controls for many switches and for built-in satellite navigation systems that provide early warning signals to engine overheating and electrical short-circuiting.
SMD vibration motor was designed for devices requiring vibration alerts or haptic feedback. Because it produces a relatively low vibrational force of 0.4 G, this motor is best suited for use in light weight devices placed directly against the user’s skin.
It may be driven by either DC voltage or a PWM signal. A driver IC is not required but may be used to produce various haptic effects. Custom foam pads, or PSA are available for mass production orders.
