4mm Mini Vibration Motor – 7mm Type Model KG-3610

Time：2022-09-23 11:23　Click：

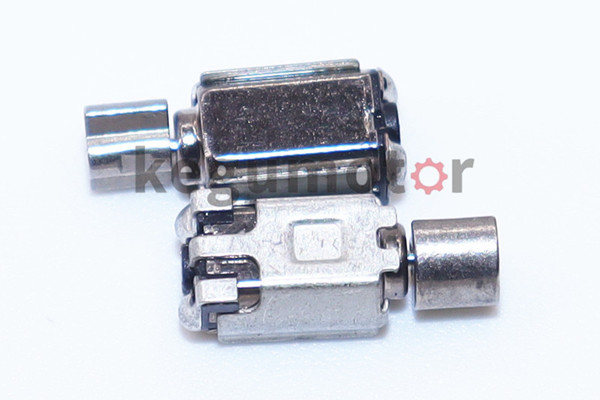

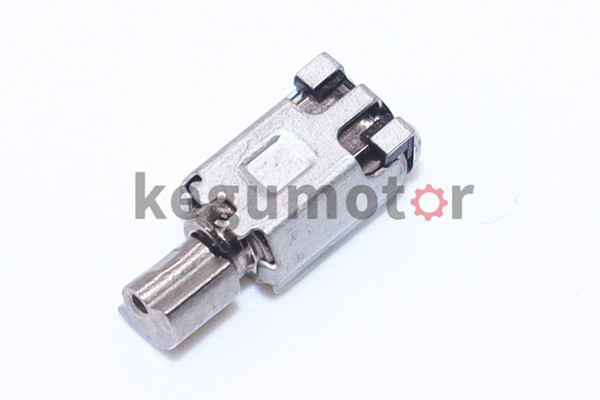

SMD/SMT Series Reflow Solderable Vibration Motors Photo

4MM Mini SMD vibration motor Datasheet

1. Standard Operating conditions

No	Item	Specifications
2-1	Rated voltage	2.7V
2-2	Operating voltage range	2.3-3.2V
2-3	Motor position	All position
2-4	Rated Load	Counterweight (R1.7*L2.8)
2-5	Rotation	CW
2-6	Operating environment	-20℃～+70℃(0～95%RH)
2-7	Storage environment	-40℃～+85℃(0～95%RH)

2. Measuring conditions

No	Item	Specifications
3-1	Normal temperature	20℃±2℃
3-2	Normal humidity	65±5%
3-3	Temperature for reference	5℃～35℃
3-4	Humidity for reference	30%～90%
3-5	Motor position when testing	Motor shaft horizontal

3. Mechanical characteristics

No	Item	Specifications	Conditions & Remarks
4-1	Appearance	Visual	No scar, rust, stain and dent
4-2	Weight	0.6g
4-3	Pull-out strength of cw	3 Kg Min
4-4	Axial play of shaft	0.3 mm MAX
4-5	Vibration force (reference)	0.35G with 100g Jig	Under rated voltage and load
4-6	Rise time characteristics	0.2S MAX	Counterweight rotates by impression of standard voltage
4-7	Mechanical noise	45dB MAX (Background noise: 25dB MAX)	Measure at rated voltage and rated load (counterweight), according to shaft direction the distance between microphone and motor is 10cm.
4-7	Mechanical noise	45dB MAX (Background noise: 25dB MAX)	10cm MOTOR Microphone Fix jig Noise level meter （JIS-A）

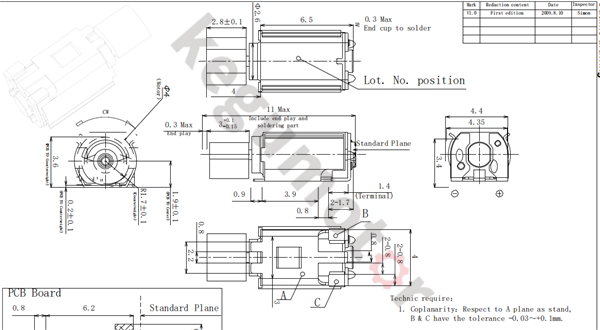

Tiny Vibration Motor PCB Type Outline Drawing

ERM Tiny Vibration Motor Applications

Used in numerous material handling devices like conveyors, feeders, and vibrating screens;
Used in hoppers, silos to stop blocking of the flow of material;
Used in compacting machines & foundry shakeouts for quick & proficient operation.

Eccentric rotating mass vibration motor is a simple device. Whilst they are not incredibly high-tech, they are used in automobiles to provide haptic feedback in touch screen displays and dashboards, including as central controls for many switches and for built-in satellite navigation systems that provide early warning signals to engine overheating and electrical short-circuiting.
SMD vibration motor was designed for devices requiring vibration alerts or haptic feedback. Because it produces a relatively low vibrational force of 0.4 G, this motor is best suited for use in light weight devices placed directly against the user’s skin.
It may be driven by either DC voltage or a PWM signal. A driver IC is not required but may be used to produce various haptic effects. Custom foam pads, or PSA are available for mass production orders.
