RS-390/395SA 28mm 12v micro brush dc motor

Desc:

RS-390/395SA 28mm 12v micro brush dc motor,Kegumotor provide RS-390/395SA 28mm 12V micro dc motor data sheet and specification, motor Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement....

Recommended
Detailed

RS-390/395SA  Motor description

Motor

28mm 12v micro dc motor

Brand

Kegumotor

Item

PMDC motor

Location

Shenzhen

Model

RS-390/395SA

Load current

0.81A

Load power

6.58W

Load volt

12V

Size

Φ27.7*47MM

Load speed

5972RPM

Load Torque

107G.cm



Certificate

ROHS/ISO9001

Application

home appliance



Volt range

3.0-24V

Efficiency

66.4%

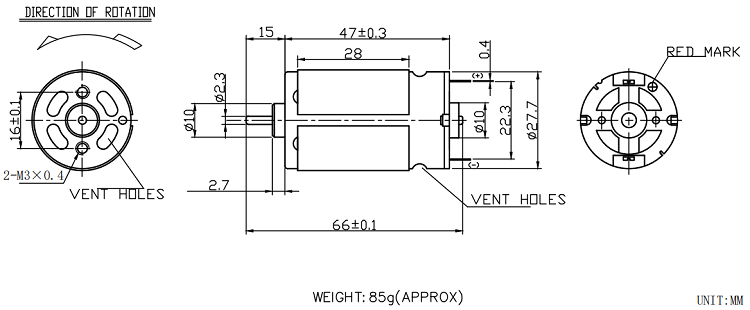

RS-390/395SA  Outline

RS-390/395SA  data sheet

Motor Model



Rated

 Voltage



No load

speed



No-load

Current



Rated

 speed



Rated

 torque



Rated

 current



Output

power

Stall Torque

Stall Current
VDC r/min A rpm g.cm A W g.cm A
RS-390SA-4535 9.0 17500 0.65 14909 155 3.74 23.8 1050

21.5

 RS-390SA-22128  12.0 7300 0.18 5972 107 0.81 6.58 590 3.65
  RS-395SA-2166     12.0  6900 0.18 5631 97.9 0.80 5.64 530 3.54
RS-395SA-3132  12.0  16800

 0.36

 14406   118  2.01 15.9   800

  12.0

RS-395-3168   7.5  8800  0.23   7480   86.8  1.34 6.67   580   7.65

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

RS-390/395SA  Application

Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.

Hair Care:Electric shaver.

Office Equipment: Printer, Projector, Counting Machine.

Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
