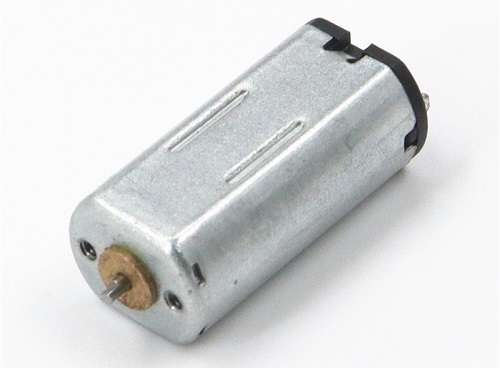

FF-M30VA 10mm 4.5V 6.0V micro brush dc motor

Desc:

FF-M30VA 10mm 4.5V 6.0V micro brush dc motor,Kegumotor provide FF-M30va 4.5v 6.0v micro dc motor data sheet and specification, motor Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement....

Recommended
Detailed

FF-M30VA Motor description

Motor

10MM 4.5v 6.0v micro dc motor

Brand

Kegumotor

Item

PMDC motor

Location

Shenzhen

Model

FF-M30 VA

Load current

86mA

Load power

0.1W

Load volt

3.0V

Size

Φ10X8X20.0

Load speed

7800RPM

Load Torque

2.0G.cm



Certificate

ROHS/ISO9001

Application

Blood pressure meter



Volt range

3-6V

Efficiency

28%

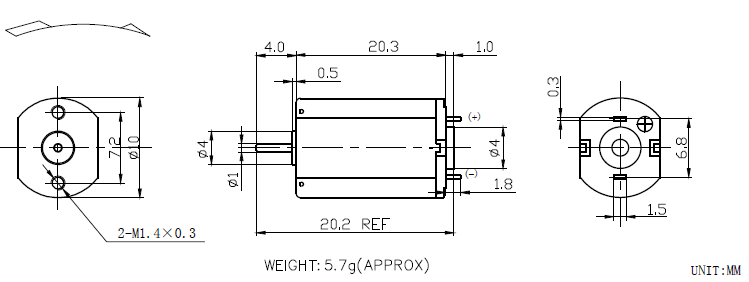

FF-M30VA Outline

FF-M30VA data sheet



Motor Model

Rated

 Voltage

No-load

Speed

No-load

Current

Rated

 speed

Rated

 torque

Rated

 current

Output

power

Stall Torque

Stall Current

VDC r/min mA rpm g.cm mA W g.cm A
FF-M30VA-08155 3.0 8000 23 6200 1.6 75 0.1 7.5

0.25

FF-M30VA-1480   3.0 25000 150 18470 3.7 420 0.9 14.0 1.20
FF-M30VA-06270 9.0 11500 40 7850 2.6 86 0.24 8.0

0.18

Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

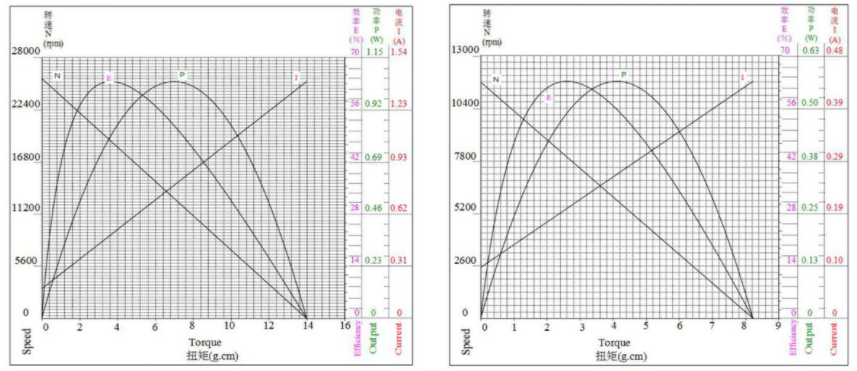

FF-M30VA Motor curves

FF-M30VA Application,

Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.

Hair Care:Electric shaver.

Office Equipment: Printer, Projector, Counting Machine.
