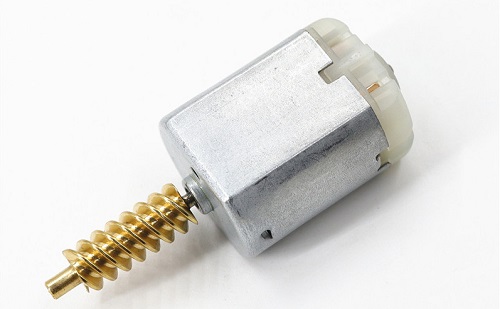

FC/FK-280 Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
FC/FK-280 |
Load current |
0.51A |
|
Load power |
2.35W |
Load volt |
13V |
Size |
Φ24X18.3X30.5MM |
|
Load speed |
7069RPM |
Load Torque |
20G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
1.5-24V |
Efficiency |
50.9% |

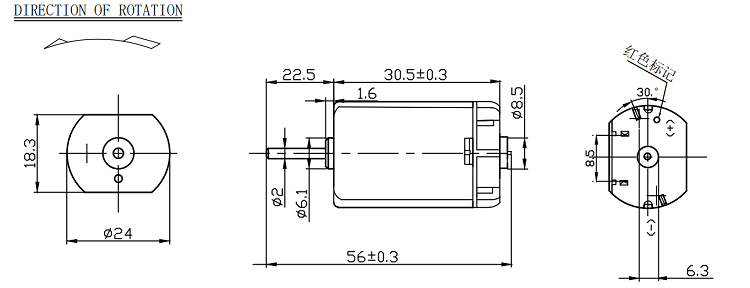

FC/FK-280 Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| FC-280SC-16240 | 13.0 | 8196 | 0.51 | 7069 | 32.4 | 0.23 | 2.35 | 234 |
1.81 |
| FC-280PD-18180 | 12.0 | 9700 | 0.16 | 7880 | 54.3 | 0.69 | 4.39 | 290 | 3.0 |
| FC-280SC-18165 | 12.0 | 10500 | 0.10 | 8500 | 20.0 | 0.65 | 4.51 | 300 | 3.2 |
| FK-280SA-3340 | 1.9 | 7850 | 0.35 | 6349 | 31.1 | 1.39 | 1.9 | 163 | 6.6 |
| FK-28SA-21130 | 12.0 | 13480 | 0.11 | 11700 | 46.9 | 0.73 | 5.69 | 360 | 4.8 |
| FK-280SA-18163 | 13.0 | 11800 | 0.12 | 9740 | 50 | 0.57 | 5.05 | 289 | 2.7 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
FC/FK-280 Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
