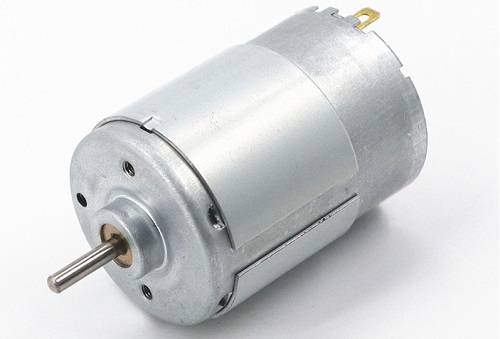

RS-540/545SH 36mm 24V micro brush dc motor

Desc:

RS-540/545SH 36mm 24V micro brush dc motor,Kegumotor provide RS-540/545SH 36mm 24V micro dc motor data sheet and specification, motor Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement....

Recommended
Detailed

RS-540/545SH  Motor description

Motor

36mm 24v micro dc motor

Brand

Kegumotor

Item

PMDC motor

Location

Shenzhen

Model

RS-540/545

Load current

0.78A

Load power

12.6W

Load volt

24V

Size

Φ35.8x50MM

Load speed

6530RPM

Load Torque

188G.cm



Certificate

ROHS/ISO9001

Application

home appliance



Volt range

3.0-24V

Efficiency

67.5%

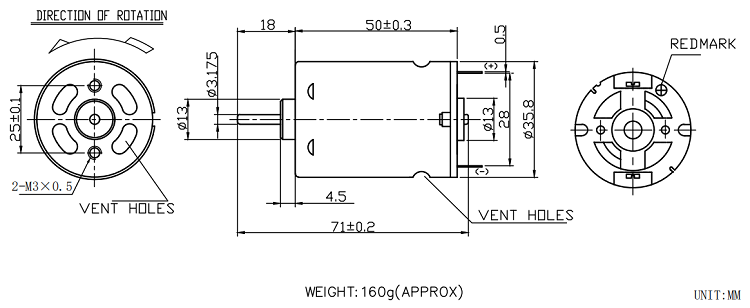

RS-540/545SH  Outline



RS-540/545SH data sheet

Motor Model



Rated

 Voltage



No load

speed



No-load

Current



Rated

 speed



Rated

 torque



Rated

 current



Output

power

Stall Torque

Stall Current

VDC r/min A rpm g.cm A W g.cm A
  RS-540SA-4552 12.0 13500 0.62 11633 231.6 3.09 28.32 1880

25.4

   RS-540PA-23198  12.0 3500 0.12 2898 151.7 0.58 4.51 882 2.79
   RS-545SA-3153    12.0 8000 0.28 6732 167.9 1.49 11.6 1060 7.90
  RS-545SA-21116   24.0  6600

 0.12

 5761  180.6   0.57 10.52   1350

    4.13

  RS-540SH-5045    6.0  11600  0.84  9600   152   4.10  15.0    880     19.7
  RS-540PH-7522    6.0  16500  1.70  13860   208   7.14   29.6   1300      35.7
  RS-545SH-17165   12.0   2450  0.06   1974   84.8   0.26   1.72   447     1.08
  RS-545PH-7850   24.0  7850  0.15   6530  188   0.78   12.6   1120      3.9

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

RS-540/545SH Application

Household Appliances: Air freshener, Smart vacuum cleaner, Soap dispenser, Dryer,Rice cooker.

Hair Care: Hair dryer, Electric hair clipper, massage instrument.

Office Equipment: Printer, Projector, Counting Machine,Shredder.

Industrial Equipment: Water,electrical and gas valve, Air switch, Water ump, Air pump, Electric drill.

Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
