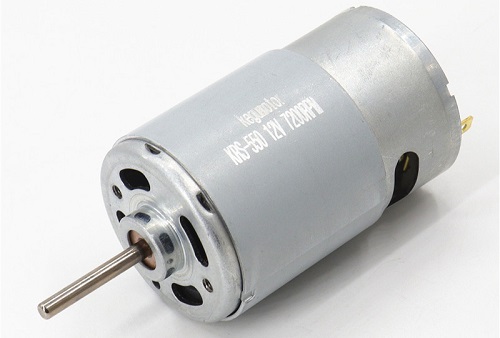

RS-550/555SH Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
RS-550/555 |
Load current |
1.7A |
|
Load power |
13.3W |
Load volt |
12V |
Size |
Φ35.8x57MM |
|
Load speed |
6300RPM |
Load Torque |
206G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
3.0-24V |
Efficiency |
65.2% |

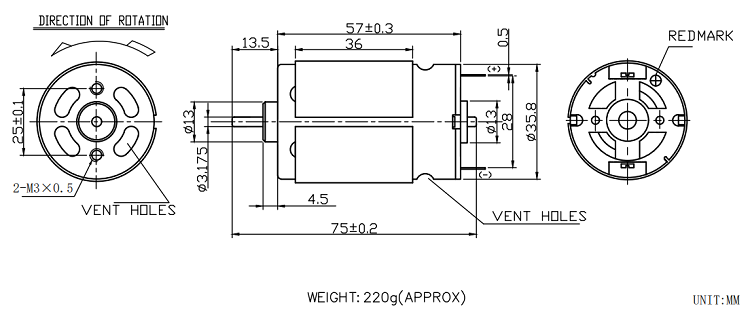

RS-550/555SH Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| RS-550SA-3780 | 12.0 | 7280 | 0.25 | 6300 | 206 | 1.70 | 13.3 | 1530 |
11.2 |
| RS-550SA-23128 | 24.0 | 4500 | 0.10 | 3932 | 262 | 0.39 | 10.6 | 2080 | 4.8 |
| RS-550SA-6034 | 12.0 | 16000 | 1.12 | 13613 | 261 | 4.96 | 40.36 | 2870 | 48.9 |
| RS-555SA-3540 | 12.0 | 7800 |
0.30 |
6708 | 223 | 1.84 | 15.3 | 1591 |
11.3 |
| RS-555SA-23100 | 24.0 | 7000 | 0.14 | 6004 | 196 | 0.77 | 12.1 | 1270 | 4.2 |
| RS-555PH-6530 | 14.4 | 20500 | 1.40 | 17500 | 424 | 7.64 | 76.2 | 2900 | 44.0 |
| RS-555SH-6529 | 12.0 | 18000 | 1.25 | 15669 | 453 | 8.4 | 72.9 | 3498 | 56.5 |
| RS-555PH-27130 | 24.0 | 7500 | 0.20 | 6527 | 298 | 1.34 | 20.0 | 2300 | 9.0 |
| RS-555SH-2763 | 24.0 | 7500 | 0.21 | 6460 | 332 | 1.30 | 22.1 | 2402 | 8.1 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
RS-550/555SH Application
Household Appliances: Air freshener, Smart vacuum cleaner, Soap dispenser, Dryer,Rice cooker.
Hair Care: Hair dryer, Electric hair clipper, massage instrument.
Office Equipment: Printer, Projector, Counting Machine，Shredder.
Industrial Equipment: Water,electrical and gas valve, Air switch, Water ump, Air pump, Electric drill.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
