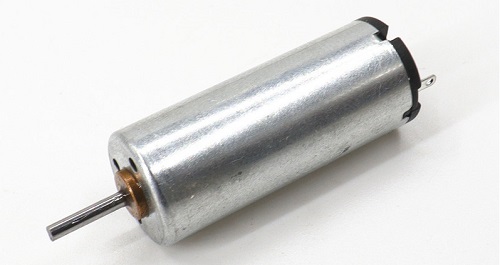

RF-1230CA Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
RF-1230CA |
Load current |
0.45A |
|
Load power |
0.68W |
Load volt |
7.0V |
Size |
Φ12X30MM |
|
Load speed |
13200RPM |
Load Torque |
5G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
3.0-24V |
Efficiency |
54% |

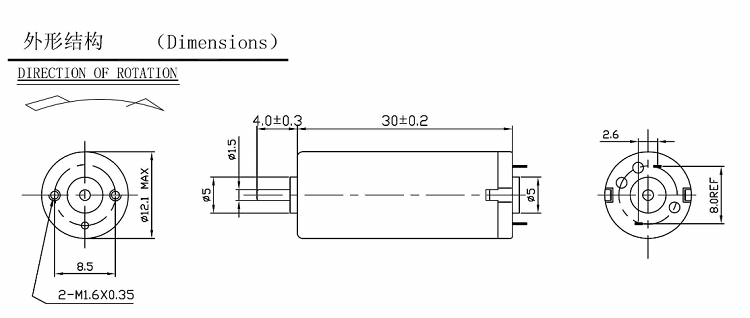

RF-1230CA Outline
| Motor Model |
Rated Voltage |
No-load Speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| RF-1230CA-1950 | 1.5 | 9500 | 0.11 | 7200 | 4.0 | 0.39 | 0.3 | 17 |
1.3 |
| RF-1230CA-1855 | 3.0 | 15800 | 0.17 | 13200 | 5.0 | 0.45 | 0.68 | 30 | 2.3 |
| RF-1230CA-1955 | 2.4 | 12700 | 0.13 | 10140 | 6.5 | 0.51 | 0.67 | 32 |
2.04 |
| RF-1230CA-13110 | 4.8 | 12600 | 0.06 | 10100 | 6.0 | 0.25 | 0.62 | 32 | 1.07 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
RF-1230CA Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine
