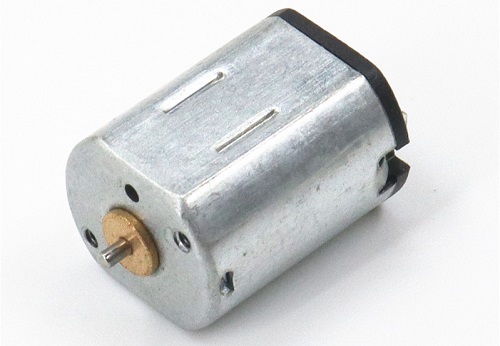

FF-N20VA 12mm 1.5V 3.0V micro brush dc motor

Desc:

FF-N20VA 12mm 1.5V 3.0V micro brush dc motor,Kegumotor provide FF-N20va 1.5v 3.0v micro dc motor data sheet and specification, motor Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement....

Recommended
Detailed

FF-N20VA Motor description

Motor

12MM 2.5v 4.0v micro dc motor

Brand

Kegumotor

Item

PMDC motor

Location

Shenzhen

Model

FF-N20 VA

Load current

150mA

Load power

0.2W

Load volt

3.7V

Size

Φ12X10X15.1

Load speed

9300RPM

Load Torque

2.0G.cm



Certificate

ROHS/ISO9001

Application

Blood pressure meter



Volt range

1.5-6V

Efficiency

55%

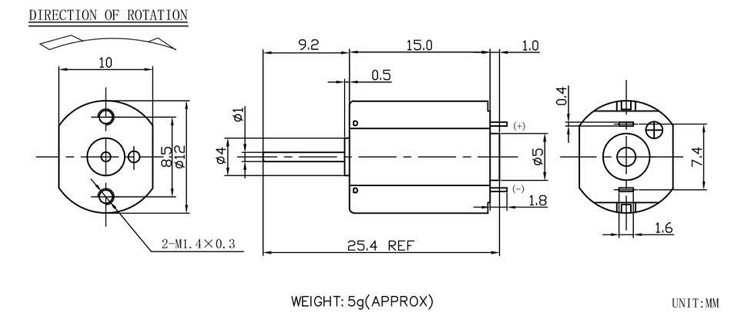

FF-N20VA Outline



FF-N20VA data sheet

Motor Model

Rated

 Voltage

No-load

Speed

No-load

Current

Rated

 speed

Rated

 torque

Rated

 current

Output

power

Stall Torque

Stall Current

VDC r/min mA rpm g.cm mA W g.cm A
FF-N20VA-13115 2.4 15800 96 12200 2.8 330 0.35 13.0

1.15

FF-N20VA-08260 4.8 14200 37 11000 2.4 130 0.27 11.0 0.44
FF-N20VA-1291   1.5 10000 60 7500 2.0 190 0.26 10.0

0.60

Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

FF-N20VA Application,

Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.

Hair Care:Electric shaver.

Office Equipment: Printer, Projector, Counting Machine.
