FF-N30VA 12mm 4.5V 6.0V micro brush dc motor

Desc:

FF-N30VA 12mm 4.5V 6.0V micro brush dc motor,Kegumotor provide FF-N30va 4.5v 6.0v micro dc motor data sheet and specification, motor Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement....

Recommended
Detailed

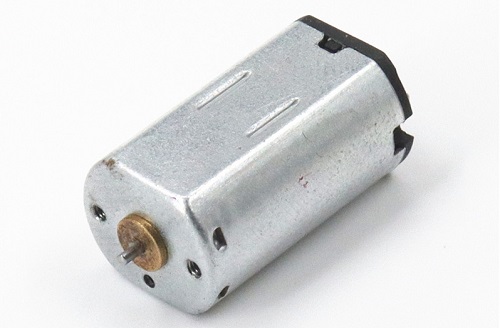

FF-N30VA Motor description

Motor

12MM 4.5v 6.0v micro dc motor

Brand

Kegumotor

Item

PMDC motor

Location

Shenzhen

Model

FF-N30 VA

Load current

150mA

Load power

0.75W

Load volt

6.0V

Size

Φ12X10X20MM

Load speed

16000RPM

Load Torque

2.0G.cm



Certificate

ROHS/ISO9001

Application

Blood pressure meter



Volt range

1.5-9V

Efficiency

67%

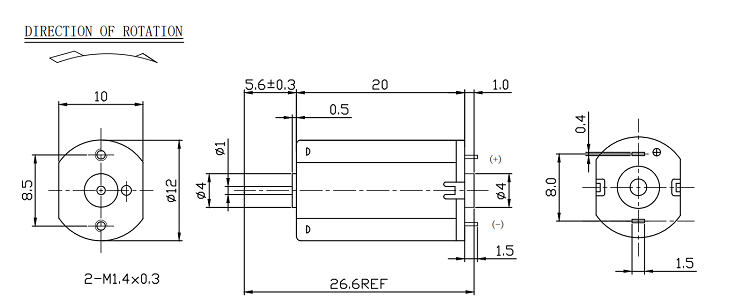

FF-N30VA Outline



FF-N30VA data sheet

Motor Model

Rated

 Voltage

No-load

Speed

No-load

Current

Rated

 speed

Rated

 torque

Rated

 current

Output

power

Stall Torque

Stall Current

VDC r/min mA rpm g.cm mA W g.cm A
  FF-N30VA-09210 2.5 5200 19 4000 1.8 66 0.07 8.0

0.23

FF-N30VA-08208 5.0 9500 22 7700 2.5 76 0.16 12.1 0.33
FF-N30VA-1557   6.0 20000 92 15800 4.8 450 1.02 22.0

2.03

Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

FF-N30VA Application,

Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.

Hair Care:Electric shaver.

Office Equipment: Printer, Projector, Counting Machine.
