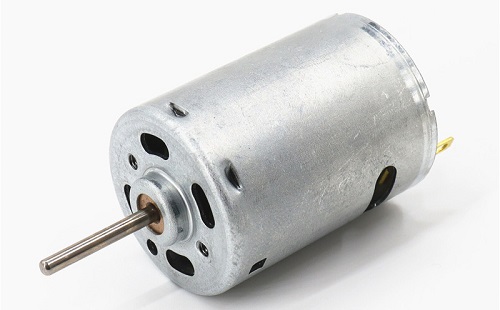

RS-380/385SH Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
RS-380/385SH |
Load current |
0.32A |
|
Load power |
6.98W |
Load volt |
4.8V |
Size |
Φ27.7*37.8MM |
|
Load speed |
6701RPM |
Load Torque |
101G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
3.0-24V |
Efficiency |
63.8% |

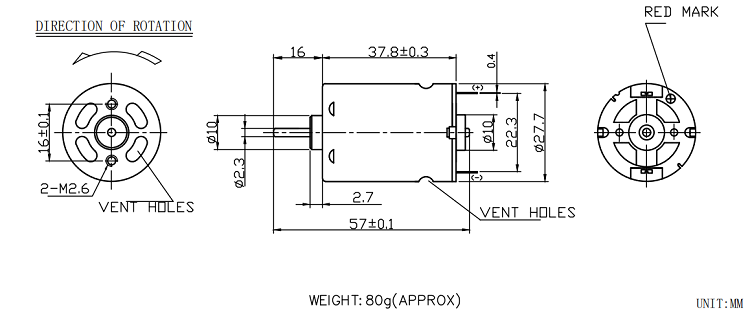

RS-380/385SH Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| RS-380SH-5520 | 3.6 | 18000 | 1.2 | 15285 | 99.5 | 2.15 | 15.6 | 660 |
38.3 |
| RS-380SH-4052 | 4.8 | 7800 | 0.32 | 18367 | 101 | 1.95 | 6.98 | 720 | 11.9 |
| RS-385SH-3557 | 12.0 | 21200 | 0.44 | 18367 | 115 | 2.85 | 21.68 | 860 | 18.5 |
| RS-385SH-17110 | 24.0 | 11000 |
0.15 |
9034 | 109 | 0.69 | 10.12 | 610 |
3.16 |
| RS-385PH-2267 | 12.0 | 10000 | 0.17 | 8340 | 76.5 | 0.85 | 6.53 | 459 | 4.29 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
RS-380/385SH Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
