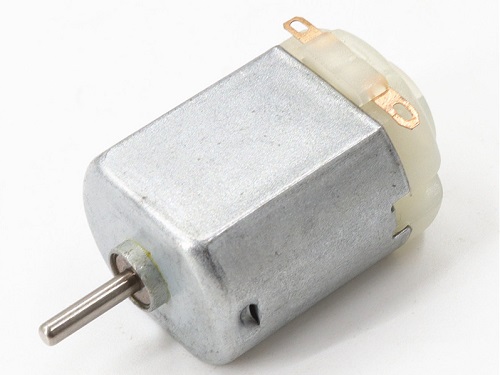

FA/FC-130SA 20mm 3v Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
FA/FC-130SA |
Load current |
1.1A |
|
Load power |
1.7W |
Load volt |
6.0V |
Size |
Φ20x25MM |
|
Load speed |
4890RPM |
Load Torque |
30G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
1.5-24V |
Efficiency |
38% |

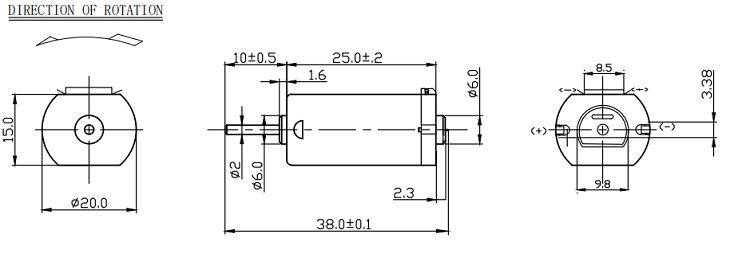

FA/FC-130SA Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| FA-130SA-17130 | 6.0 | 15000 | 0.20 | 8700 | 30 | 1.1 | 1.7 | 55 |
2.87 |
| FA-130SA-2747 | 3.0 | 20000 | 0.72 | 14000 | 20 | 2.78 | 1.5 | 42 | 6.67 |
| FC-130SA-14150 | 6.0 | 12400 | 0.22 | 9601 | 13.5 | 0.55 | 0.83 | 45 | 2.0 |
| FC-130SA-2270 | 3.0 | 18500 | 0.36 | 14170 | 9.4 | 1.18 | 1.36 | 40 | 2.2 |
| FA-130SA-18100 | 1.5 | 6200 | 0.15 | 4540 | 4.8 | 0.41 | 0.22 | 18 | 1.12 |
| FA-130SA-14150 | 3.0 | 6200 | 0.08 | 4780 | 7.6 | 0.27 | 0.37 | 33 | 0.9 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
FA/FC-130SA Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
