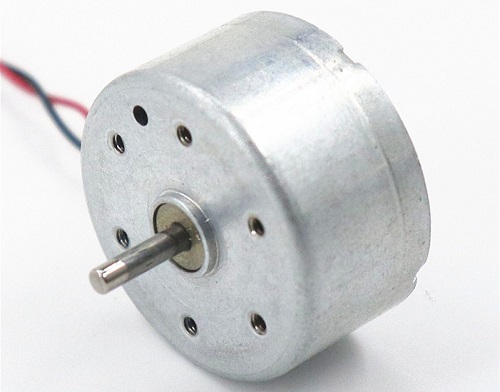

RF-300CA/FA Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
RF-300CA/FA |
Load current |
0.11A |
|
Load power |
0.07W |
Load volt |
6.0V |
Size |
Φ24.4X12.5MM |
|
Load speed |
3700RPM |
Load Torque |
6.0G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
1.5-12V |
Efficiency |
62% |

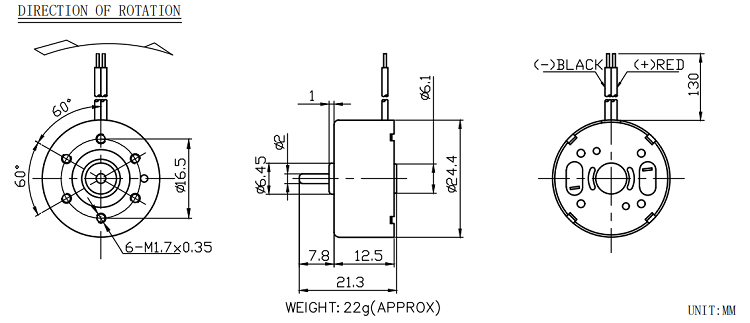

RF-300CA/FA Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| RF-300CA-12400 | 3.6 | 3895 | 0.02 | 3134 | 4.2 | 0.07 | 0.11 | 21.2 |
0.27 |
| RF-300CA-33013 | 3.0 | 4600 | 0.03 | 3700 | 6.0 | 0.11 | 0.07 | 29.0 | 0.46 |
| RF-300CA-41501 | 3.0 | 3500 | 0.02 | 2400 | 5.0 | 0.07 | 0.05 | 18.0 | 0.22 |
| RF-300CA-11400 | 3.0 | 3700 | 0.02 | 2970 | 3.8 | 0.07 | 0.12 | 20.0 | 0.30 |
| RF-300FA-09550 | 3.0 | 2700 | 0.01 | 2100 | 2.8 | 0.04 | 0.06 | 13.0 | 0.15 |
| RF-300FA-14270 | 5.0 | 10500 | 0.07 | 9200 | 3.9 | 0.15 | 0.30 | 40.0 | 0.95 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
RF-300CA/FA Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
