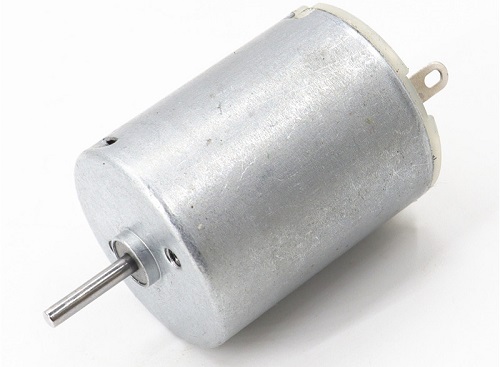

RE/RC-280 Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
RE/RC-280 |
Load current |
0.87A |
|
Load power |
1.61W |
Load volt |
3V |
Size |
Φ24X30.5MM |
|
Load speed |
7770RPM |
Load Torque |
20G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
1.5-24V |
Efficiency |
48.2% |

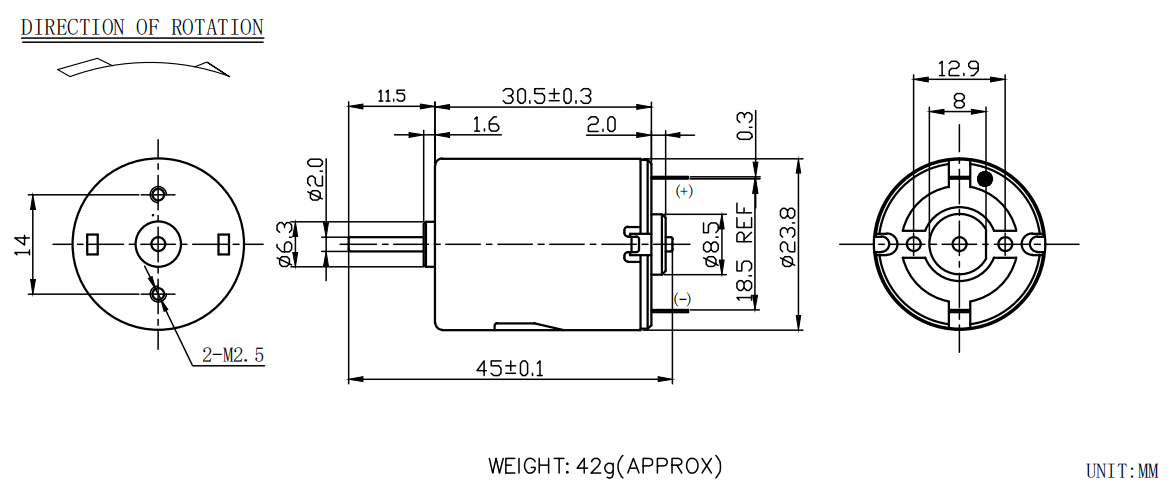

RE/RC-280 Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| RE-280RA-2865 | 3.0 | 9200 | 0.16 | 7770 | 20 | 0.87 | 1.61 | 129 |
4.7 |
| RE-280RA-3525 | 3.0 | 20400 | 0.55 | 17000 | 24.1 | 2.88 | 4.21 | 145 | 14.6 |
| RC-260SA-2865 | 6.0 | 14000 | 0.28 | 11900 | 45.5 | 1.60 | 5.56 | 305 | 9.1 |
| RC-280SA-2769 | 6.0 | 14000 | 0.24 | 11948 | 44 | 1.37 | 0.55 | 300 | 8.0 |
| RC-280-20125 | 9.0 | 11600 | 0.12 | 9930 | 38.8 | 0.7 | 0.55 | 270 | 4.2 |
| RC-280-09400 | 24 | 9100 | 0.04 | 7390 | 31 | 0.18 | 2.35 | 165 | 0.75 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
RE/RC-280 Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
