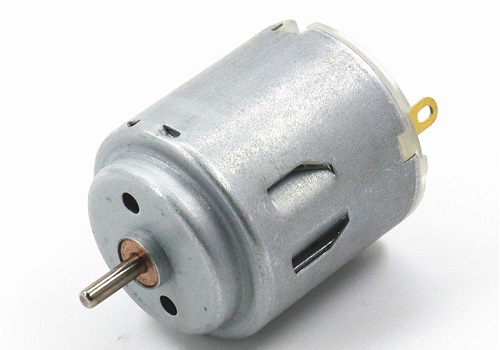

RE/RC-260 Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
RE/RC-260 |
Load current |
0.09A |
|
Load power |
0.47W |
Load volt |
12V |
Size |
Φ24X27MM |
|
Load speed |
4650RPM |
Load Torque |
10G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
1.5-24V |
Efficiency |
44.2% |

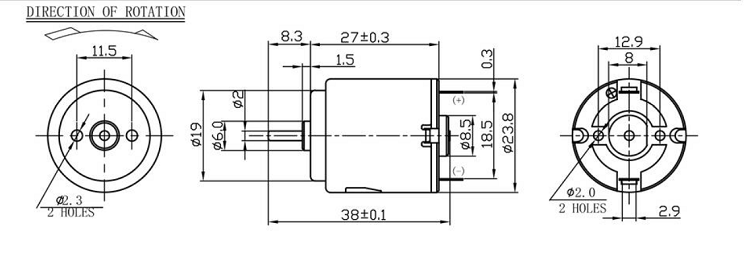

RE/RC-260 Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| RC-260RA-08560 | 12 | 6200 | 0.03 | 4650 | 10 | 0.09 | 0.47 | 40 |
0.27 |
| RC-260SA-12300 | 9.0 | 6550 | 0.06 | 5110 | 19.7 | 0.22 | 1.03 | 90 | 0.79 |
| RC-260RA-10350 | 12 | 10000 | 0.04 | 8040 | 13 | 0.16 | 1.07 | 66 | 0.67 |
| RE-260RA-2670 | 1.5 | 6300 | 0.16 | 5040 | 10 | 0.64 | 0.52 | 50 | 2.56 |
| RC-260-08550 | 24 | 10000 | 0.033 | 8100 | 21 | 0.14 | 1.98 | 110 | 0.60 |
| RC-260-07675 | 24 | 8000 | 0.028 | 6216 | 24 | 0.10 | 1.19 | 110 | 0.34 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
RE/RC-260 Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
