RF-310/320 24mm 6v micro brush dc motor

Desc:

RF-310/320 24mm 6v micro brush dc motor,Kegumotor provide rf-310/320 24mm 6v micro dc motor data sheet and specification, motor Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement....

Recommended
Detailed

RF-310/320  Motor description

Motor

24mm 6v micro dc motor

Brand

Kegumotor

Item

PMDC motor

Location

Shenzhen

Model

RF-310/320

Load current

0.03A

Load power

0.02W

Load volt

6.0V

Size

Φ24.4X18.4MM

Load speed

4400RPM

Load Torque

4.5G.cm



Certificate

ROHS/ISO9001

Application

home appliance



Volt range

1.5-15V

Efficiency

51.5%

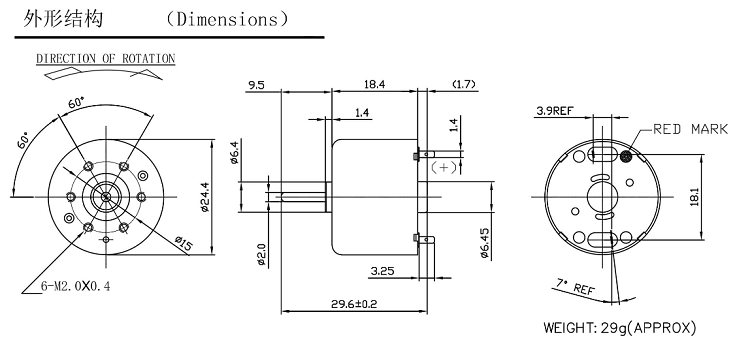

RF-310/320  Outline



RF-310/320 data sheet

Motor Model



Rated

 Voltage



No load

speed



No-load

Current



Rated

 speed



Rated

 torque



Rated

 current



Output

power

Stall Torque

Stall Current

VDC r/min A rpm g.cm A W g.cm A
RF-310CA-10552 12 8500 0.02 7800 5.0 0.05 0.04 65

0.61

RF-310CA-11380 6.0 6080 0.03 4600 10 0.13 0.47 42 0.54
RF-310T-11400    5.0 5200 0.03 4400 4.5 0.079 0.2 29.3 0.35
RF-310T-07730    12 3300   0.01 2400    6.7  0.03 0.165   24.3   0.083
RF-320CA-11470   4.5 3600  0.015 2941    5.9  0.07 0.17   31.6   0.29
RF-320CA-17195   3.0 5800  0.04 5000    5.0  0.14  0.26    45    1.1

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

RF-310/320  Application

Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.

Hair Care:Electric shaver.

Office Equipment: Printer, Projector, Counting Machine.

Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
