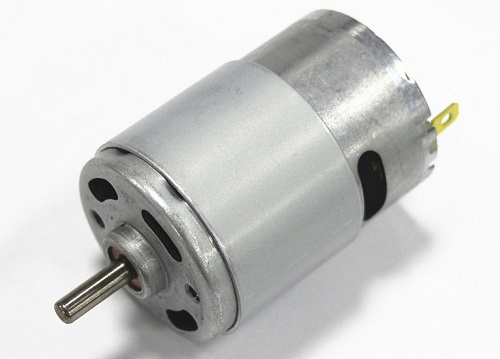

RS-750/755SH 42mm 12V micro brush dc motor

Desc:

RS-750/755SH 42mm 12V micro brush dc motor,Kegumotor provide RS-750/755SH 42mm12V micro dc motor data sheet and specification, motor Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement....

Recommended
Detailed

RS-750/755SH Motor description

Motor

42mm 12v micro dc motor

Brand

Kegumotor

Item

PMDC motor

Location

Shenzhen

Model

RS-750/755

Load current

5.05A

Load power

41.7W

Load volt

12V

Size

Φ42.2X60MM

Load speed

8900RPM

Load Torque

456G.cm



Certificate

ROHS/ISO9001

Application

home appliance



Volt range

3.0-24V

Efficiency

68.8%

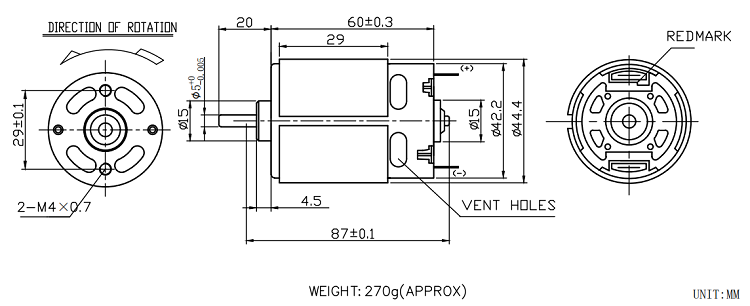

RS-750/755SH Outline



RS-750/755SH data sheet

Motor Model



Rated

 Voltage



No load

speed



No-load

Current



Rated

 speed



Rated

 torque



Rated

 current



Output

power

Stall Torque

Stall Current

VDC r/min A rpm g.cm A W g.cm A
  RS-750SH-5050 12.0 10500 0.85 8900 456 0.85 41.7 3000

28.5

   RS-750SH-7032   12.0 15000 1.79  12671 496 7.52 66.6 4010 55.6
    RS-750PH-7030    9.6 12700 1.30  12700 550 9.90  62.1 4110 65.5
   RS-755SH-7512   6.0  9500

  2.26

  8123   460  9.31  38.2  3130

 66.3

   RS-755SH-4050   12.0  6500   0.5   5400   350  4.6  19.4  2080  12.4
   RS-755PH-8017   18.0 19800   2.3  16320   1406  18.8  235  8000  96.5
   RS-755VC-4540   18.0  8800   0.7   7470    651  3.92  49.9  4302  22.0

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

RS-750/755SH Application

Household Appliances: Air freshener, Smart vacuum cleaner, Soap dispenser, Dryer,Rice cooker.

Hair Care: Hair dryer, Electric hair clipper, massage instrument.

Office Equipment: Printer, Projector, Counting Machine,Shredder.

Industrial Equipment: Water,electrical and gas valve, Air switch, Water ump, Air pump, Electric drill.

Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
