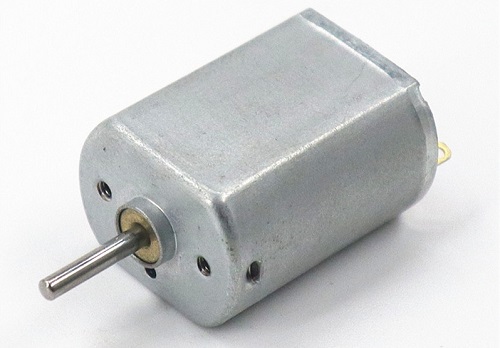

FF-130SH/PH 20mm 6v Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
FF-130SH/PH |
Load current |
0.11A |
|
Load power |
0.52W |
Load volt |
7.5V |
Size |
Φ20x25.1MM |
|
Load speed |
4890RPM |
Load Torque |
10.3G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
3.0-24V |
Efficiency |
52% |

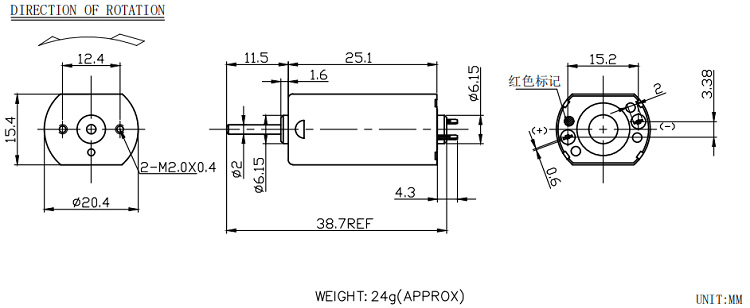

FF-130SH/PH Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| FF-130PH-10330 | 7.5 | 6100 | 0.023 | 4890 | 10.3 | 0.113 | 0.52 | 52 |
0.46 |
| FF-130PH-20100 | 3.0 | 8000 | 0.130 | 6436 | 14.1 | 0.53 | 0.93 | 71 | 2.2 |
| FF-130SH-10385 | 6.0 | 4800 | 0.020 | 3500 | 10.0 | 0.09 | 0.13 | 39 | 0.3 |
| FF-130SH-14175 | 3.7 | 6000 | 0.060 | 4800 | 10.0 | 0.20 | 0.20 | 52 | 0.8 |
| FK-130SH-12265 | 12 | 13000 | 0.09 | 10000 | 25 | 0.33 | 1.01 | 112 | 1.2 |
| FC-130PH-140016 | 12 | 23500 | 0.18 | 17500 | 35 | 0.89 | 2.05 | 115 | 3.1 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
FF-130SH/PH Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
