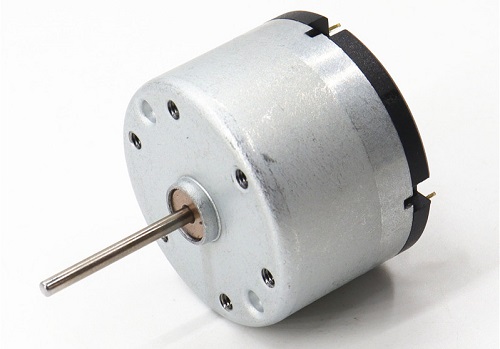

RF/RK-520 Motor description
|
Motor |
33mm 9v micro dc motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
Location |
Shenzhen |
Model |
RF/RK-520 |
Load current |
0.32A |
|
Load power |
0.19W |
Load volt |
6V |
Size |
Φ33x22.7MM |
|
Load speed |
3900RPM |
Load Torque |
35G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
3.0-24V |
Efficiency |
51% |

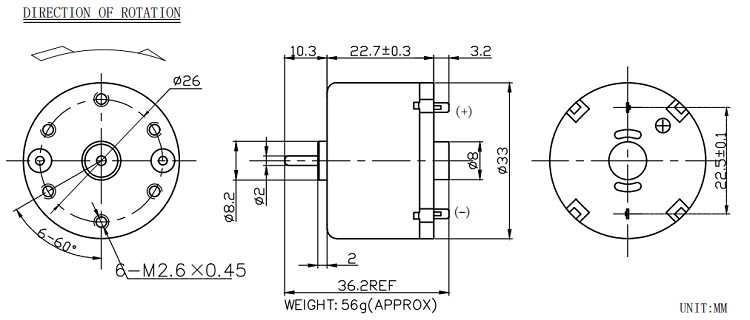

RF/RK-520 Outline
RF/RK-520 data sheet
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| RF-520-01 | 6.0 | 4900 | 0.03 | 3900 | 35 | 0.32 | 0.19 | 165 |
1.81 |
| RF-520-02 | 6.0 | 3200 | 0.02 | 2300 | 40 | 0.22 | 0.14 | 147 | 0.87 |
| RF-520-03 | 12 | 12000 | 0.11 | 9000 | 70 | 0.80 | 1.3 | 305 | 4.10 |
| RK-520-04 | 12 | 10000 | 0.06 | 7700 | 60 | 0.57 | 0.73 | 276 | 3.83 |
| RK-520-05 | 12 | 9000 | 0.08 | 7200 | 50 | 0.47 | 0.86 | 252 | 2.85 |
| RK-520-06 | 12 | 8000 | 0.07 | 5800 | 70 | 0.51 | 0.80 | 275 | 2.44 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
RF/RK-520 Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
