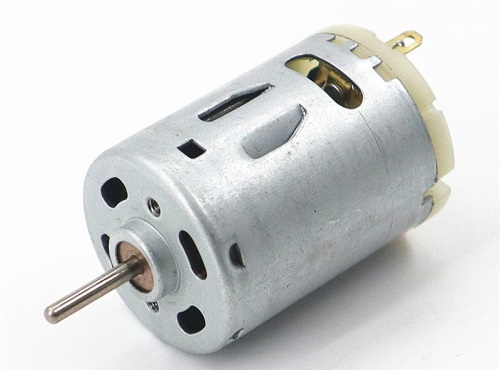

RS-380/385SA Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
RS-380/385SA |
Load current |
0.11A |
|
Load power |
0.85W |
Load volt |
12.0V |
Size |
Φ27.7*37.8MM |
|
Load speed |
2439RPM |
Load Torque |
33.7G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
3.0-24V |
Efficiency |
54.3% |

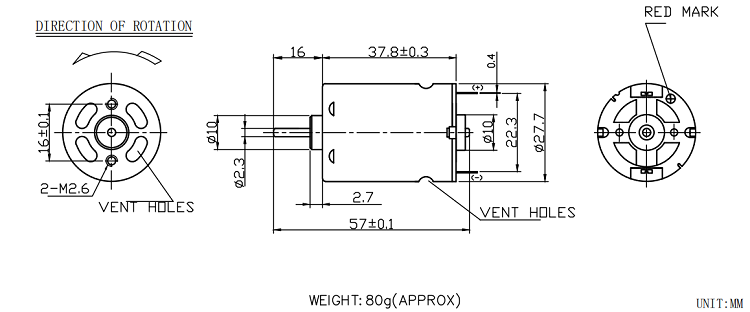

RS-380/385SA Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| RS-380SA-3749 | 6.0 | 11000 | 0.39 | 9522 | 99.4 | 2.51 | 9.72 | 740 |
16.2 |
| RS-380SA-15265 | 24.0 | 9080 | 0.08 | 7730 | 95.5 | 0.40 | 7.52 | 605 | 2.49 |
| RS-385SA-11210 | 12.0 | 3100 | 0.03 | 2439 | 33.7 | 0.11 | 0.85 | 160 | 0.41 |
| RS-385SA-12175 | 24.0 | 7000 |
0.06 |
5750 | 66.5 | 0.25 | 3.91 | 375 |
1.27 |
| RS-385-3270 | 12.0 | 17480 | 0.40 | 14755 | 98.7 | 2.15 | 15.1 | 635 | 11.6 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
RS-380/385SA Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
