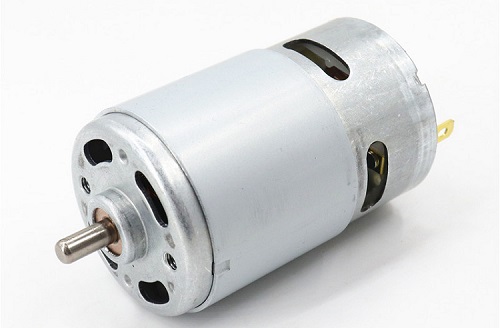

RS-770/775SH 42mm 24V micro brush dc motor

Desc:

RS-770/775SH 42mm 24V micro brush dc motor,Kegumotor provide RS-770/775SH 42mm 24V micro dc motor data sheet and specification, motor Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement....

Recommended
Detailed

RS-770/775SH Motor description

Motor

42mm 24v micro dc motor

Brand

Kegumotor

Item

PMDC motor

Location

Shenzhen

Model

RS-770/775

Load current

9.88A

Load power

79.5W

Load volt

24V

Size

Φ42.2X67MM

Load speed

9100RPM

Load Torque

850G.cm



Certificate

ROHS/ISO9001

Application

home appliance



Volt range

3.0-24V

Efficiency

67%



RS-770/775SH Outline



RS-770/775SH data sheet

Motor Model



Rated

 Voltage



No load

speed



No-load

Current



Rated

 speed



Rated

 torque



Rated

 current



Output

power

Stall Torque

Stall Current

VDC r/min A rpm g.cm A W g.cm A
  RS-770SH-7038 12.0 10600 1.3 9100 850 9.88 79.5 6000

61.9

   RS-770SH-7529   20.0 24500 2.5  20000 1470 22.0 302 8000 108.6
    RS-770PH-8523    12.0  15000 2.2  13177 826 15.9  112  6802 115
   RS-775SH-25110   24.0  3478

  0.15

  2925   453   0.75  13.3  2506

  4.07

   RS-775SH-4040   12.0  5000   0.55  4200   460   2.95  19.8  2880  15.6
   RS-775PH-8514   18.0 19500   2.7  16000   1974  26.1   325  11000  130.4

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

RS-770/775SH Application

Household Appliances: Air freshener, Smart vacuum cleaner, Soap dispenser, Dryer,Rice cooker.

Hair Care: Hair dryer, Electric hair clipper, massage instrument.

Office Equipment: Printer, Projector, Counting Machine,Shredder.

Industrial Equipment: Water,electrical and gas valve, Air switch, Water ump, Air pump, Electric drill.

Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
