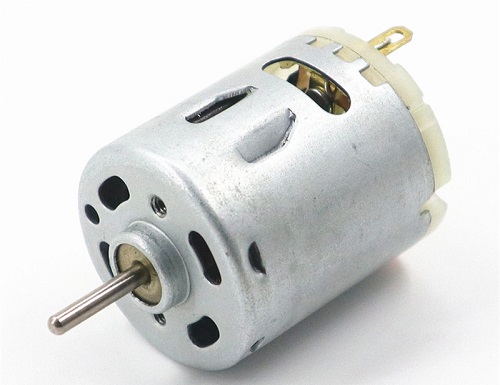

RS-360/365SA Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
RS-360/365SA |
Load current |
0.19A |
|
Load power |
1.46W |
Load volt |
12.0V |
Size |
Φ27.7*32.6MM |
|
Load speed |
3716RPM |
Load Torque |
38.3G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
3.0-24V |
Efficiency |
49% |
RS-360/365SA Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| RS-360SA-13370 | 12.0 | 4500 | 0.04 | 3716 | 38.3 | 0.19 | 1.46 | 220 |
0.9 |
| RS-360SA-11520 | 24.0 | 7100 | 0.05 | 5671 | 46.3 | 0.23 | 2.70 | 260 | 1.06 |
| RS-360RA-10500 | 24.0 | 9000 | 0.06 | 7310 | 30.0 | 0.19 | 2.25 | 160 | 0.75 |
| RS-365SA-15113 | 12.0 | 5420 |
0.14 |
6153 | 57.3 | 0.52 | 3.60 | 270 |
1.96 |
| RS-365SA-8365 | 24.0 | 5420 | 0.033 | 4109 | 28.6 | 0.10 | 1.21 | 120 | 0.33 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
RS-360/365SA Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
