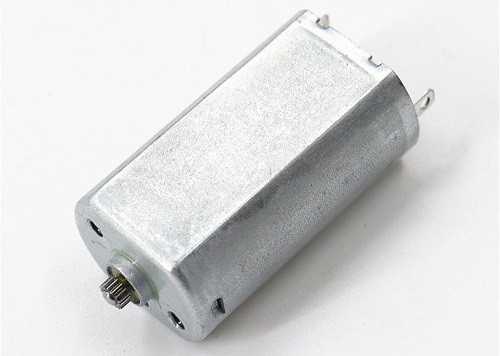

FF/FK-050PH 16mm 6v micro brush dc motor

Desc:

FF/FK-050PH 16mm 6v micro brush dc motor,Kegumotor provide FF/FK-050PH 16mm micro dc motor data sheet and specification, motor Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement....

Recommended
Detailed

FF/FK-050PH Motor description

Motor

16mm 6v 24v micro dc motor

Brand

Kegumotor

Item

PMDC motor

Location

Shenzhen

Model

FF-030PA/PK

Load current

60mA

Load power

1.2W

Load volt

7.0V

Size

Φ15.5X12X26.9MM

Load speed

9800RPM

Load Torque

12G.cm



Certificate

ROHS/ISO9001

Application

home appliance



Volt range

3.0-24V

Efficiency

53%

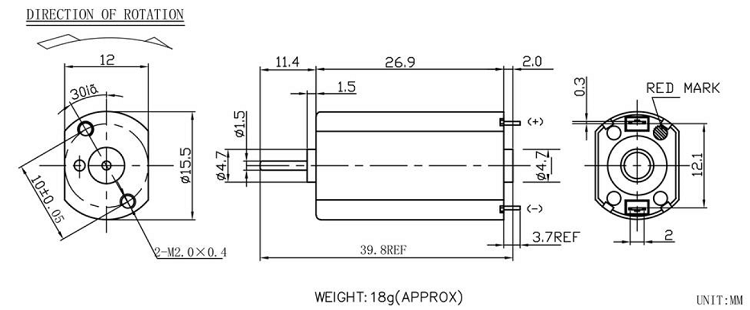

 FF/FK-050PH Outline



 FF/FK-050PH data sheet

Motor Model

Rated

 Voltage

No-load

Speed

No-load

Current

Rated

 speed

Rated

 torque

Rated

 current

Output

power

Stall Torque

Stall Current

VDC r/min mA rpm g.cm A W g.cm A
FF-050PH-12140  7.0 12500 60 9800 12 0.30 1.2 54

1.10

FF-050PH-11170  7.0 10500 40 9300 5 0.12 0.48 46 0.80
FK-050PH-5430   24 13800 30 9200 11.2 0.14 1.06 34

0.23

FK-050PH-2434 3.7 16800    370 16300  5.0 0.60  0.84      180      7.45

Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

 FF/FK-050PH Application,

Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.

Hair Care:Electric shaver.

Office Equipment: Printer, Projector, Counting Machine
