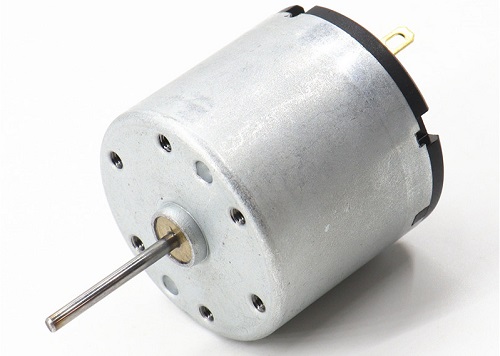

RF/RK-528 Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
RF/RK-528 |
Load current |
0.69A |
|
Load power |
0.19W |
Load volt |
6V |
Size |
Φ33x29.3MM |
|
Load speed |
2400RPM |
Load Torque |
70G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
3.0-24V |
Efficiency |
51% |

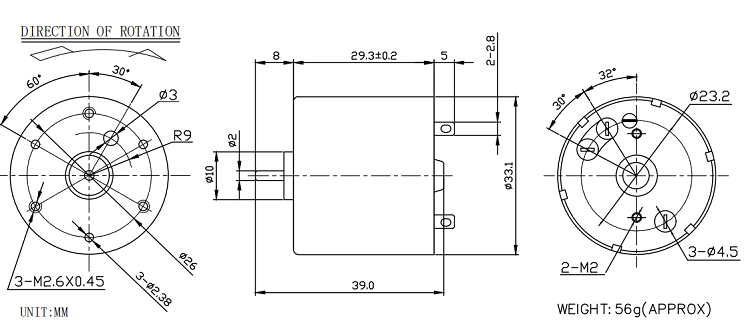

RF/RK-528 Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| RF-528-01 | 3.0 | 3200 | 0.07 | 2400 | 70 | 0.69 | 0.19 | 308 |
0.38 |
| RF-528-02 | 3.0 | 3000 | 0.06 | 2300 | 70 | 0.66 | 0.18 | 334 | 0.33 |
| RF-528-03 | 12 | 5250 | 0.05 | 4300 | 100 | 0.46 | 0.58 | 576 | 0.85 |
| RK-528-04 | 12 | 6000 | 0.04 | 4700 | 70 | 0.37 | 0.48 | 334 | 0.9 |
| RK-528-05 | 24 | 8000 | 0.05 | 7300 | 20 | 0.14 | 1.49 | 228 | 1.3 |
| RK-528-06 | 4.5 | 6300 | 0.17 | 5500 | 20 | 0.45 | 1.12 | 157 | 0.38 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
RF/RK-528 Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
