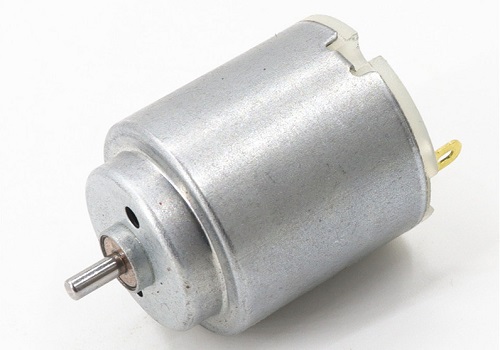

RE/RC-140 Motor description
|
Motor |
Brand |
Kegumotor |
Item |
PMDC motor |
|
|
Location |
Shenzhen |
Model |
RE/RC-140 |
Load current |
1.18A |
|
Load power |
1.36W |
Load volt |
3V |
Size |
Φ21X25MM |
|
Load speed |
14170RPM |
Load Torque |
9.4G.cm |
||
|
Certificate |
ROHS/ISO9001 |
Application |
home appliance |
||
|
Volt range |
2.0-12V |
Efficiency |
43% |

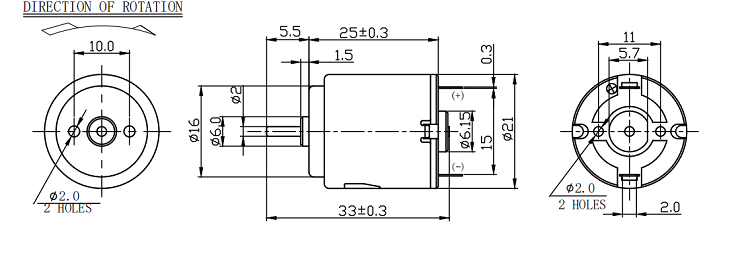

RE/RC-140 Outline
| Motor Model |
Rated Voltage |
No load speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | g.cm | A | W | g.cm | A | |
| RE-140RA-2270 | 3.0 | 18500 | 0.36 | 14170 | 9.4 | 1.18 | 1.36 | 40 |
3.85 |
| RE-140SA-14230 | 6.0 | 12400 | 0.14 | 9560 | 12.1 | 0.47 | 1.19 | 53 | 1.59 |
| RE-140-13130 | 3.0 | 13500 | 0.27 | 10740 | 14 | 1.05 | 1.54 | 68 | 4.10 |
| RE-140-12240 | 3.0 | 4800 | 0.05 | 3700 | 4.0 | 0.13 | 0.15 | 17 | 0.39 |
| RC-140-2270 | 1.5 | 8100 | 0.21 | 6100 | 6.5 | 0.66 | 0.41 | 28 | 2.1 |
| RC-140-18100 | 3.0 | 10900 | 0.16 | 8500 | 8.0 | 0.58 | 0.70 | 37 | 2.04 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

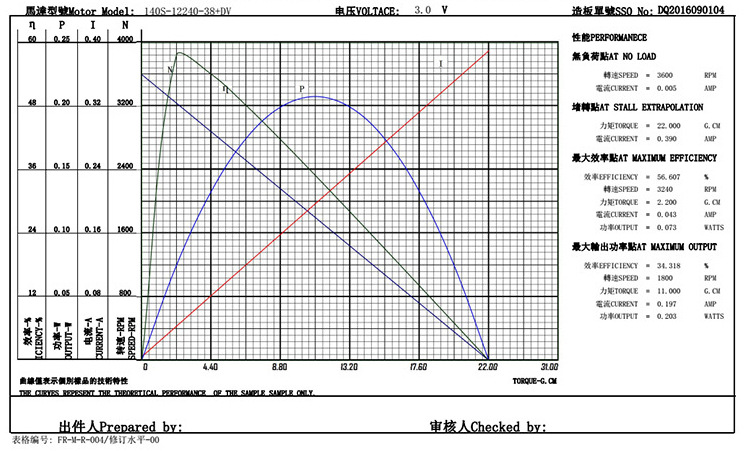

RE/RC-140 Motor curves
RE/RC-140 Application
Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.
Hair Care：Electric shaver.
Office Equipment: Printer, Projector, Counting Machine.
Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
