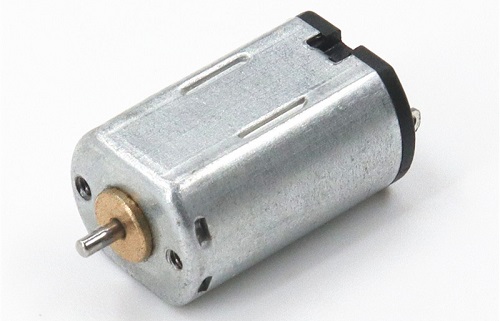

FF-M20VA 10mm 1.5V 3.0V micro brush dc motor

Desc:

Kegumotor provide FF-M20va micro dc motor data sheet and specification, motor Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement....

Recommended
Detailed

FF-M20VA Motor description

Motor

10MM 1.5v 3.0v micro dc motor

Brand

Kegumotor

Item

PMDC motor

Location

Shenzhen

Model

FF-M20 VA

Load current

100mA

Load power

0.1W

Load volt

3.0V

Size

Φ10X8X15.0

Load speed

7000RPM

Load Torque

1.0G.cm



Certificate

ROHS/ISO9001

Application

Blood pressure meter



Volt range

3-5V

Efficiency

30%

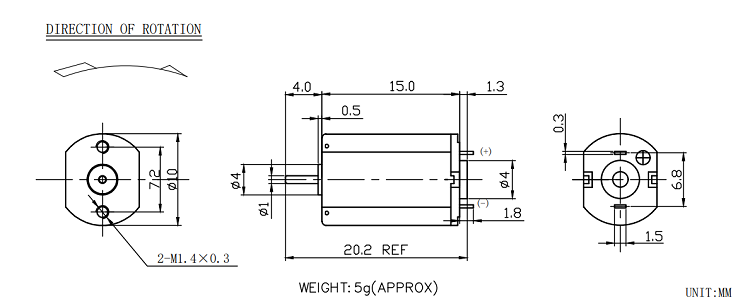

FF-M20VA Outline

FF-M20VA data sheet

Motor Model

Rated

 Voltage

No-load

Speed

No-load

Current

Rated

 speed

Rated

 torque

Rated

 current

Output

power

Stall Torque

Stall Current

VDC r/min mA rpm g.cm mA W g.cm A
FF-M20VA-09120 3.0 15700 40 13500 1.0 100 0.14 7.0

0.50

FF-M20VA-82130 3.0 15200 45 11800 1.6 160 0.19 8.0 0.60
FF-M20VA-72170 2.0 8000 25 6100 0.8 70 0.05 4.0 0.24

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.



FF-M20VA Application

Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.

Hair Care:Electric shaver.

Office Equipment: Printer, Projector, Counting Machine.
