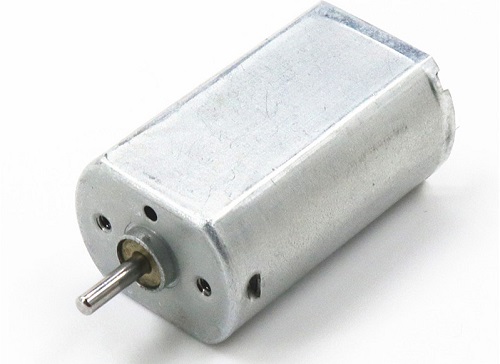

FF/FK-180SH 20mm 12v micro brush dc motor

Desc:

FF/FK-180SH 20mm 12v micro brush dc motor,Kegumotor provide FF/FK-180SH 20mm 12v micro dc motor data sheet and specification, motor Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement....

Recommended
Detailed


FF/FK-180SH Motor description

Motor

20mm 12v micro dc motor

Brand

Kegumotor

Item

PMDC motor

Location

Shenzhen

Model

FF/FK-180SH

Load current

0.06A

Load power

0.11W

Load volt

6.0V

Size

Φ20x32.1MM

Load speed

1750RPM

Load Torque

10.0G.cm



Certificate

ROHS/ISO9001

Application

home appliance



Volt range

3.0-24V

Efficiency

52%

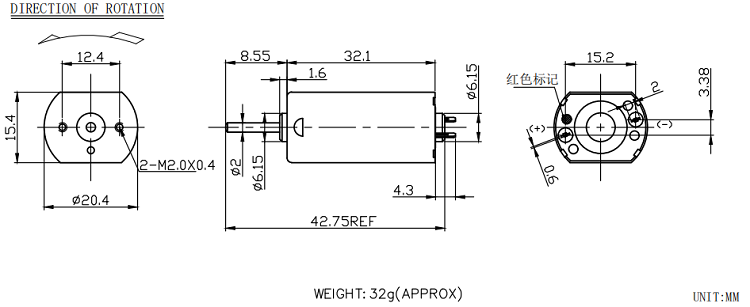

FF/FK-180SH Outline



FF/FK-180SH data sheet

Motor Model



Rated

 Voltage



No load

speed



No-load

Current



Rated

 speed



Rated

 torque



Rated

 current



Output

power

Stall Torque

Stall Current

VDC r/min A rpm g.cm A W g.cm A
FF-180SH-01 6.0 2400 0.02 1750 10.0 0.06 0.11 38

0.18

FF-180SH-02  24 8000 0.02 6200 30.0 0.12 0.48 135 0.48
FF-180SH-03 5.0 8000 0.12 6200 30.0 0.56 0.57 142  0.80
FK-180SH-04   12 12000  0.09  8600  50.0   0.57 0.97   177   1.20
FK-180SH-05   12 8000  0.06 6000  30.0   0.26 0.67   121    0.91
FK-180SH-06   12 4400  0.02 3500   13.6   0.08 0.49    67    0.32

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
FF/FK-180SH Application

Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.

Hair Care:Electric shaver.

Office Equipment: Printer, Projector, Counting Machine.

Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
