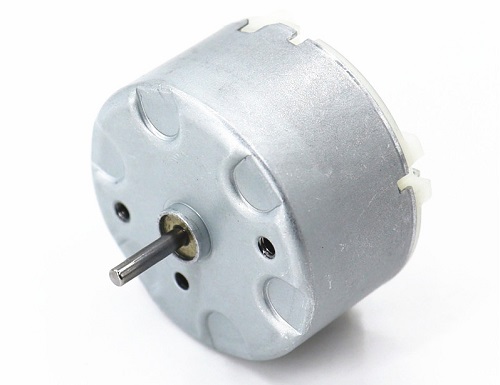

RF/RK-500TB 32mm 12v micro brush dc motor

Desc:

RF/RK-500TB 32mm 12v micro brush dc motor,Kegumotor provide RF/RK-500TB 32mm 12v micro dc motor data sheet and specification, motor Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement....

Recommended
Detailed

RF/RK-500TB  Motor description

Motor

32mm 12v micro dc motor

Brand

Kegumotor

Item

PMDC motor

Location

Shenzhen

Model

RF/RK-500TB

Load current

0.21A

Load power

0.08W

Load volt

3V

Size

Φ32x19.5MM

Load speed

2100RPM

Load Torque

20G.cm



Certificate

ROHS/ISO9001

Application

home appliance



Volt range

3.0-24V

Efficiency

51%

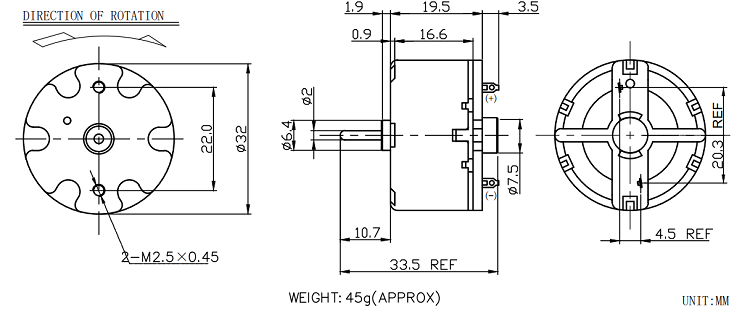

RF/RK-500TB  Outline

RF/RK-500TB data sheet

Motor Model



Rated

 Voltage

No load

speed



No-load

Current



Rated

 speed



Rated

 torque



Rated

 current



Output

power

Stall torque

Stall Current

VDC  r/min A rpm g.cm A W g.cm A
 RF-500TB-01          3.0 3000 0.03 2100 20 0.21 0.08 71

0.77

 RF-500TB-02          4.5 2800 0.02 2000 20 0.12 0.07 79 0.47
  RF-500TB-03           6.0 2800 0.01 2100 20 0.10 0.08 80 0.37
 RK-500TB-04            15 9000  0.06 6900    40  0.30  0.83   176   1.48
 RK-500TB-05   12 7200  0.05  5800    25  0.20  0.51   143  1.17
 RK-500TB-06   3.0 6000  0.11 5100    15  0.39  0.32   106   2.23

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

RF/RK-500TB  Application

Household Appliances: CD/DVD player, Camera, Blood pressure meter, Camera, Rice cooker.

Hair Care:Electric shaver.

Office Equipment: Printer, Projector, Counting Machine.

Business Equipment: Vending machines, Parking locks, ATM machines,Mahjong machine, Card picking machine.
