BL4260i BL4260 B4260M OD Diameter 42mm Small Inner Rotor Brushless DC BLDC Motor -Typical Application
Communication Device: Antenna RCU
Automobile Parts: Micro Pump, Switcher
Home Application: White Goods, Small Appliance, Kitchen Appliance,
Smart Home, Micro Actuate
Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump
Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter
Business Equipment: Scanner, Cash Register
Personal Care: Skin Care, Beauty Apparatus
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs
12V 18V 24V 42mm Diameter 5000rpm 4260 BLDC Motor
-
Specification:
-
Size: Ø42.0* 60.0mm
-
Built-in driver(built-in driver Controller with hall sensor)
-
PWM pulse wide speed range
-
Clockwise/counter-clockwise rotation
-
FG speed feedback signal
-
Low EMC
-
Low noise
-
Long life: 20000hrs Min.
-
Over-current protection
-
Over-voltage protection
-
Under-voltage protection
-
OEM and ODM orders are welcome
-
The design can be customized
High performance 42MM BLDC brushless dc motor a family of BL4235i,BL4260i,BL4275i

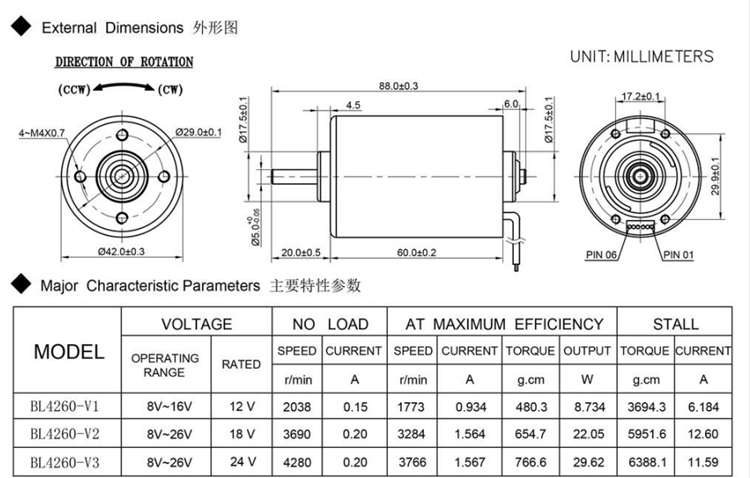

BL4260i BL4260 B4260M Motor drawing:
BL4260 Data Sheet
| Motor Model |
Rated Voltage |
No-load Speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | mNm | A | W | mNm | A | |
| BL4260-V1 | 12 | 2038 | 0.15 | 1773 | 48.9 | 0.93 | 8.73 | 577 |
6.2 |
| BL4260-V2 | 18 | 3690 | 0.20 | 3284 | 66.7 | 1.56 | 22.0 | 607 | 12.6 |
| BL4260-V3 | 24 | 4280 | 0.20 | 3766 | 78.2 | 1.57 | 29.6 | 651 | 11.59 |
| BL4260-V4 | 12 | 4590 | 0.28 | 3500 | 45.0 | 1.88 | 16.5 | 190 | 3.0 |
| BL4260-V5 | 24 | 4260 | 0.26 | 3270 | 95.0 | 1.85 | 32.5 | 409 | 3.0 |
| BL4260-V6 | 24 | 4046 | 0.24 | 3342 | 60.0 | 1.21 | 21.0 | 344 | 2.5 |

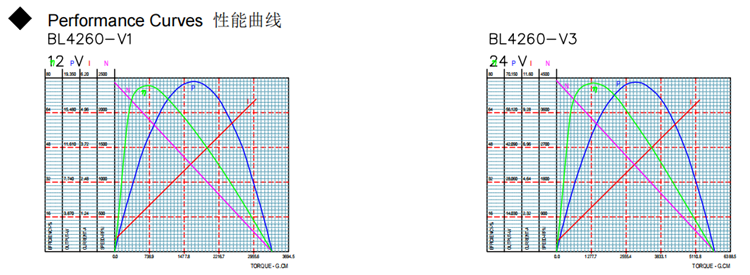

BL4260-V1 12V BL4260-V3 24V
Notice: Data in this typical specification sheet are for other certain customers.
Note: The data in this typical data sheet applies to other specific customers.
The reliability and stability of the product is an important index for evaluating the technical level of the product. To precisely analyze, evaluate and verify the performance of the product.
