Specifications:
- Size: Ø28.0* 47.0mm
- Built-in driver ( built-in driver Controller with hall sensors)
- PWM pulse wide speed range
- Clockwise/counter-clockwise rotation
- FG speed feedback signal
- Low EMC
- Low noise
- Long life: 10000hrs Min.
- Over-current protection
- Over-voltage protection
- Under-voltage protection
- OEM and ODM orders are welcome
- The design can be customized
-
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application
3.Can equip with Gear ReducerOD 28mm inner rotor small bldc brushless dc motor has BL2838,BL2847,BL2867 models
BL2847 application
Home Application: White Goods, Small Appliance, Fanner, Electric Curtain
BL2847-V1 12V BL2847-V3 24V
Home Application: White Goods, Small Appliance, Fanner, Electric Curtain
Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal machine
Business Equipment: Printer, Copier, Projector, Scanner, Cash Register

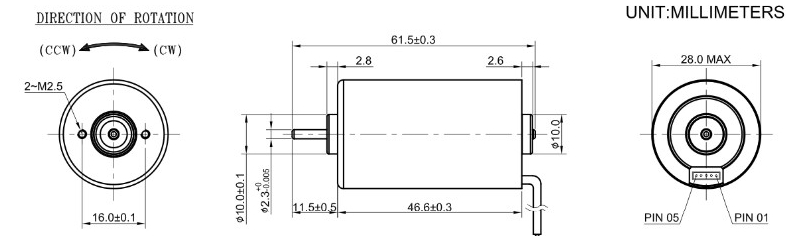

BL2847i BL2847 B2847M Motor drawing:
BL2847 Data Sheet
| Motor Model |
Rated Voltage |
No-load Speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | mNm | A | W | mNm | A | |
| BL2847-V1 | 12 | 7170 | 0.17 | 6095 | 12.5 | 0.9 | 7.6 | 83 |
5.1 |
| BL2847-V2 | 18 | 10833 | 0.20 | 9100 | 15.1 | 1.1 | 13.8 | 94 | 5.7 |
| BL2847-V3 | 24 | 12370 | 0.21 | 10391 | 17.8 | 1.1 | 18.5 | 110 | 5.8 |
| BL2847-V4 | 12 | 5100 | 0.14 | 3677 | 35 | 1.7 | 13.5 | 124 | 2.5 |
| BL2847-V5 | 24 | 6800 | 0.10 | 5172 | 50 | 1.6 | 27.1 | 207 | 2.5 |

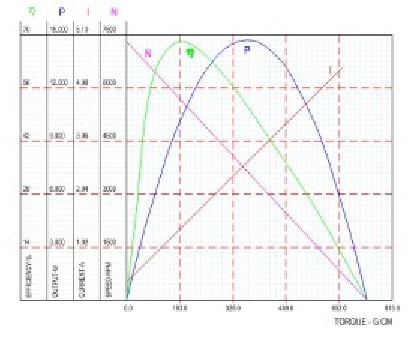

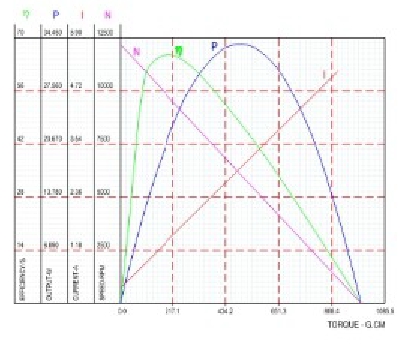

BL2847-V1 12V BL2847-V3 24V
Notice: Data in this typical specification sheet are for other certain customers.
