BL3830O BL3830 OD 38mm Mini BLDC Brushless DC Motor_Micro BLDC Gear Motor|Micro DC Planetary Gear Motor|Mini BLDC Motor

BL3830O BL3830 OD Diameter 38mm Small Out Rotor Brushless DC BLDC Motor -Typical Application

Communication Device: Antenna RCU

Automobile Parts: Micro Pump, Switcher

Home Application: White Goods, Small Appliance, Kitchen Appliance,

Smart Home, Micro Actuate

Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump

Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter

Business Equipment: Scanner, Cash Register

Personal Care: Skin Care, Beauty Apparatus

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs

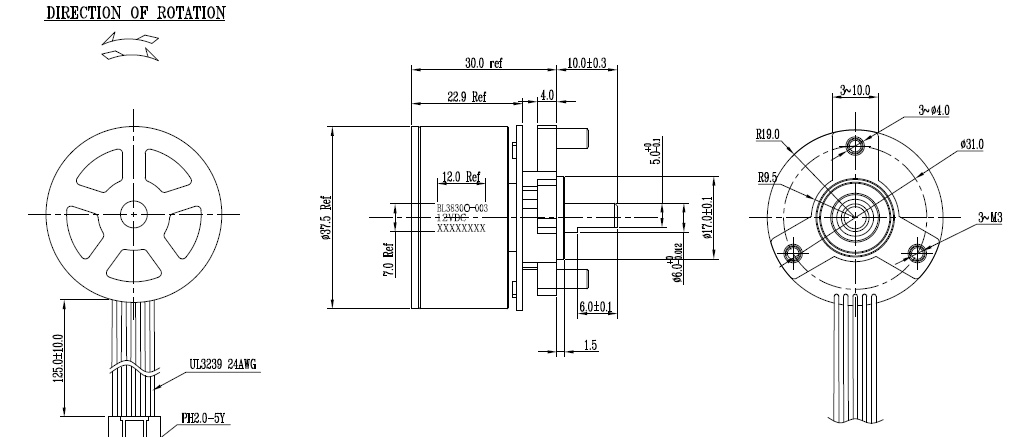

BL3830O BL3830 Outline Drawing:

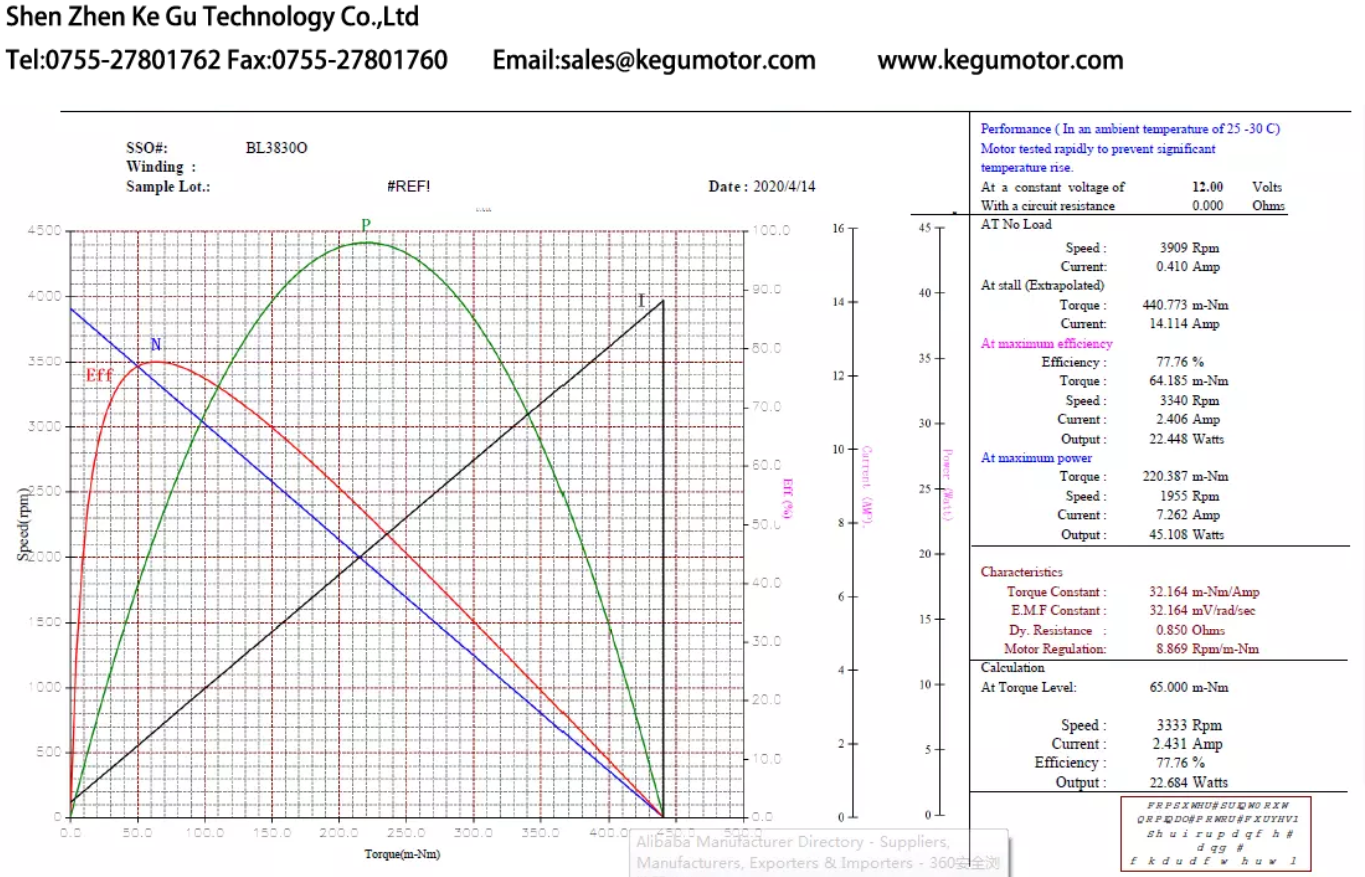

BL3830O BL3830 Data Sheet

Motor Model	Rated Voltage	No-load Speed	Rated speed	Max Power	Output power	Stall Torque	Stall Current
Motor Model	VDC	r/min	rpm	A	W	mNm	A
BL3830-V1	7.4	3900	3300	25	2	510	6.0
BL3830-V2	12	3900	3300	35	3	612	6.0
BL3830-V3	24	3900	3300	45	5	710	6.0

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.

BL3830O BL3830 OD 38mm Mini BLDC Brushless DC Motor
