BL5025O BL5025 OD 50mm Mini BLDC Brushless DC Motor

Desc:

BL5025O,BL5025 OD 50mm brushless dc motor, out rotor, Built-in driver, control, PWM, cw, ccw rotation, FG speed feedback signal, Low EMC, Low noiseinner rotor, small brushless dc motor, diameter 50mm bldc motor, small bldc motor...

Recommended
Detailed

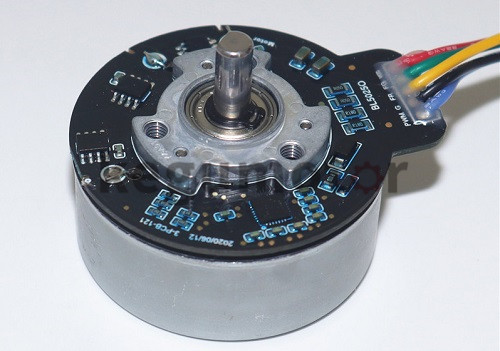

BL5025O BL5025 OD Diameter 50mm Small Out Rotor Brushless DC BLDC Motor -Typical Application

Communication Device: Antenna RCU

Automobile Parts: Micro Pump, Switcher

Home Application: White Goods, Small Appliance, Kitchen Appliance,

Smart Home, Micro Actuate

Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump

Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter

Business Equipment: Scanner, Cash Register

Personal Care: Skin Care, Beauty Apparatus

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs

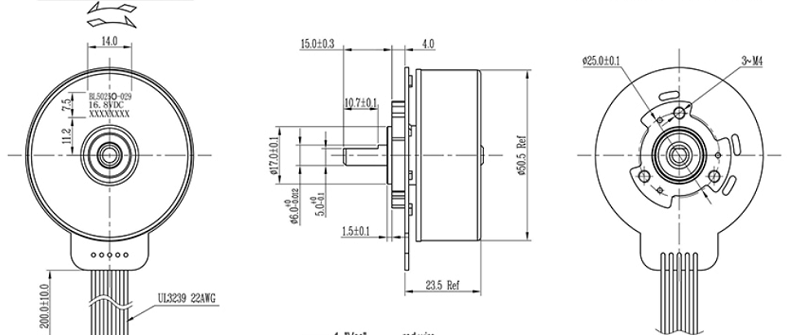

BL5025O BL5025 Outline Drawing:

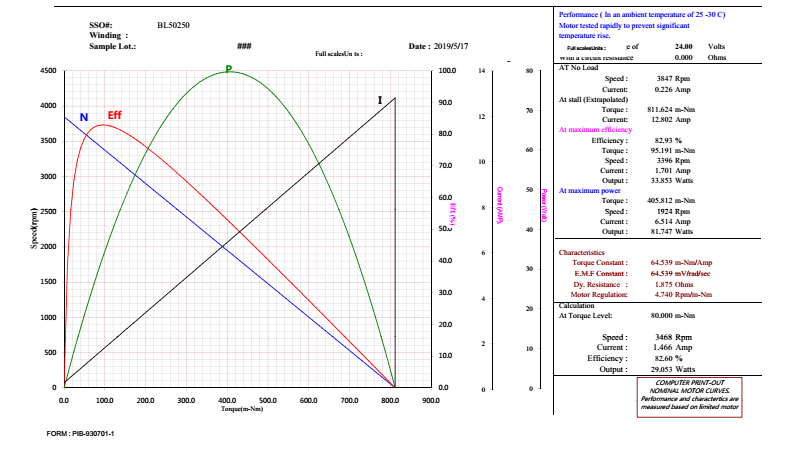

BL5025O BL5025  Data Sheet

Motor Model

Rated

 Voltage

No-load

Speed

No-load

Current

Rated

 speed

Rated

 torque

Rated

 current

Output

power

Stall Torque

Stall Current

VDC r/min A rpm mNm A W mNm A
BL5025O-V1 24 3847 0.22 3396 95.1 1.7 33.8 811 12.8



BL5025O-V1

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current,
power and shaft extension feature & dimension can be changed to meet customer specific requirement.

Note: The data in this typical data sheet applies to other specific customers.

The reliability and stability of the product is an important index for evaluating the technical level of the product. To precisely analyze, evaluate and verify the performance of the product.
