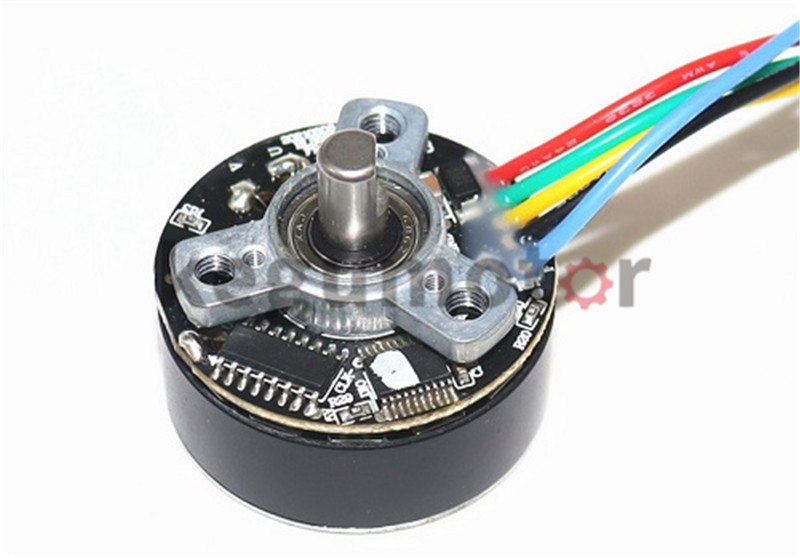

BL3525O BL3525 OD 35mm Mini BLDC Brushless DC Motor

Desc:

BL3525O,BL3525 OD 35mm brushless dc motor, out rotor, Built-in driver, control, PWM, cw, ccw rotation, FG speed feedback signal, Low EMC, Low noiseinner rotor, small brushless dc motor, diameter 35mm bldc motor, small bldc motor...

Recommended
Detailed

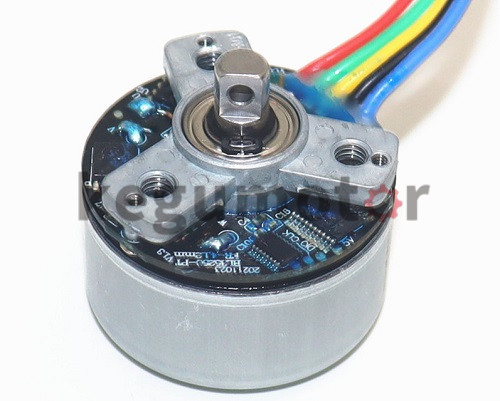

BL3525O BL3525 OD Diameter 35mm Small Out Rotor Brushless DC BLDC Motor -Typical Application

Communication Device: Antenna RCU

Automobile Parts: Micro Pump, Switcher

Home Application: White Goods, Small Appliance, Kitchen Appliance,

Smart Home, Micro Actuate

Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump

Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter

Business Equipment: Scanner, Cash Register

Personal Care: Skin Care, Beauty Apparatus

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs

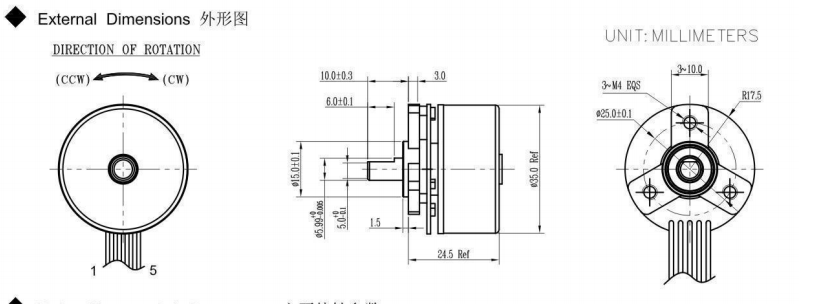

BL3525O BL3525 Outline Drawing:

BL3525O BL3525  Data Sheet



Motor Model

Rated

 Voltage

No-load

Speed

No-load

Current

Rated

 speed

Rated

 torque

Rated

 current

Output

power

Stall Torque

Stall Current

VDC r/min A rpm mNm A W mNm A
BL3525O-V1 7.4 3900 0.52 3169 37.1 2.08 20 196 8.7
BL3525O-V2 12.0 3820 0.28 3222 41.6 1.19 25 226 5.2
BL3525O-V3 16.8 3830 0.33 3290 43.8 2.10 31 255 8.9
BL3525O-V4 24.0 3860 0.39 3310 50.0 0.90 39 291 4.8

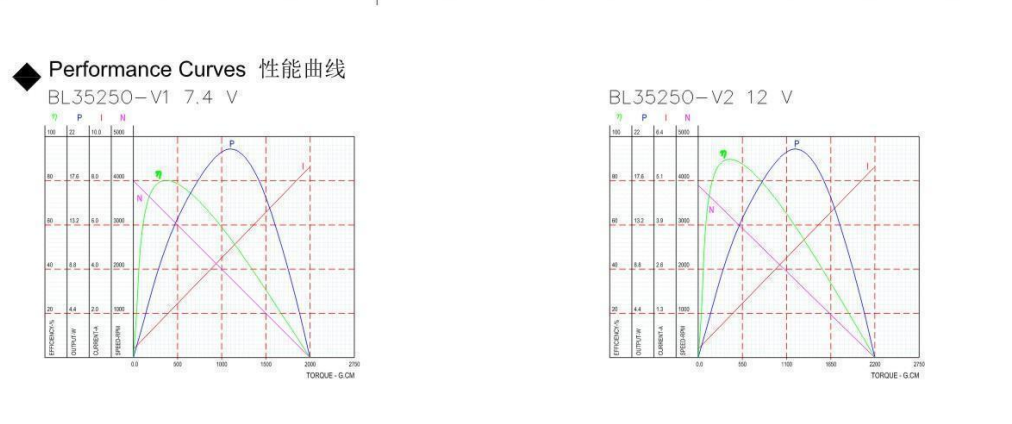

BL3525O-V1   7.4V                                                                                          BL3525O-V2  12V

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current,
power and shaft extension feature & dimension can be changed to meet customer specific requirement.

Note: The data in this typical data sheet applies to other specific customers.

The reliability and stability of the product is an important index for evaluating the technical level of the product. To precisely analyze, evaluate and verify the performance of the product.

Company presentation

Shen Zhen Ke Gu Technology Co., Ltd. is a private high-tech enterprise integrating research, development, production and sales of various kinds of miniature DC motors, precision gears and micro gears of systems. We also offer drive solutions for customers in the design, manufacture and assembly of components. The company strictly implements the IS9001: 2015 management system.



Products are often used in the automotive industry, in communication devices, in the smart home, in medical devices, in intelligent security, in household appliances, in western kitchen appliances, in machines and electronics as well as in other high-quality transmission structures. Products are exported to more than 50 countries and regions at home abroad
