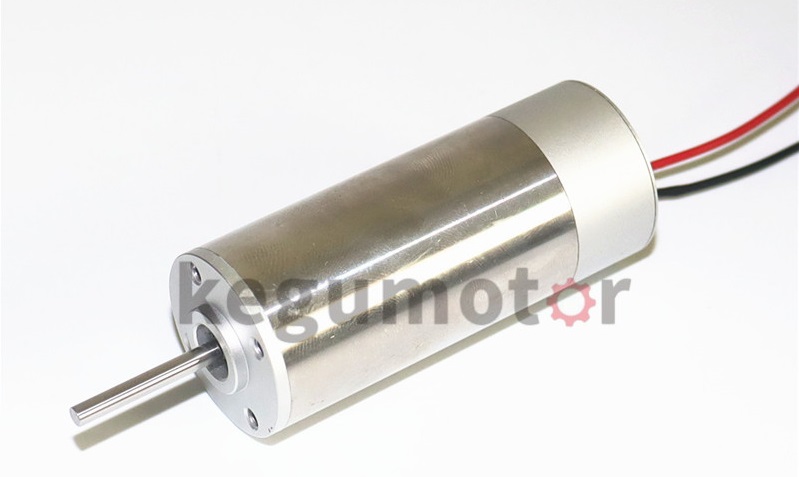

BL2867 BL2867I OD 28mm Mini BLDC Brushless DC Motor

Desc:

BL2867 BL2867I OD 28mm brushless dc motor, inner rotor, Built-in driver, control, PWM, cw, ccw rotation, FG speed feedback signal, Low EMC, Low noiseinner rotor, small brushless dc motor, diameter 28mm bldc motor, small bldc motor...

Recommended
Detailed


Specifications:

  • Size: Ø28.0* 67.0mm
  • Built-in driver ( built-in driver Controller with hall sensors)
  • PWM pulse wide speed range
  • Clockwise/counter-clockwise rotation
  • FG speed feedback signal
  • Low EMC
  • Low noise
  • Long life: 10000hrs Min.
  • Over-current protection
  • Over-voltage protection
  • Under-voltage protection
  • OEM and ODM orders are welcome
  • The design can be customized
  • Characters:
    1.Small size dc brushless motor with low speed and big torque
    2.Suitable to small diameter, low noise and big torque application
    3.Can equip with Gear Reducer

    OD 28mm inner rotor small bldc brushless dc motor has BL2838,BL2847,BL2867 models

BL2867 application
Home Application: White Goods, Small Appliance, Fanner, Electric Curtain

Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal machine

Business Equipment: Printer, Copier, Projector, Scanner, Cash Register

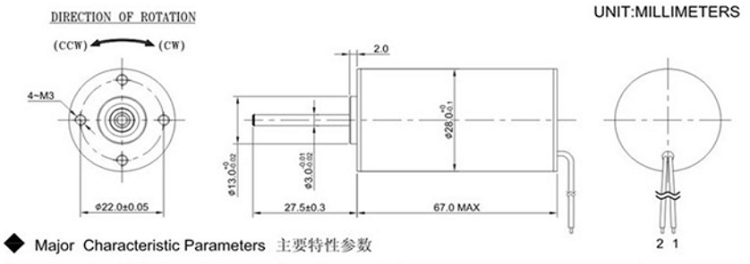

BL2867i BL2867 B2867M Motor drawing:



BL2867 Data Sheet

Motor Model

Rated

 Voltage

No-load

Speed

No-load

Current

Rated

 speed

Rated

 torque

Rated

 current

Output

power

Stall Torque

Stall Current

VDC r/min A rpm mNm A W mNm A
BL2867-V1 12 4445 0.14 3689 15 0.68 5.5 87

3.3

BL2867-V2 18 6223 0.15 5227 23 0.78 9.7 116 4.1
BL2867-V3 24 7543 0.17 6185 23 0.83 14.2 127 3.8

BL2867-V1                                     12V                   BL2867-V3                                24V
performance curve of BL2867i B2867M 1   performance curve of BL2867i B2867M 2

Notice: Data in this typical specification sheet are for other certain customers.
