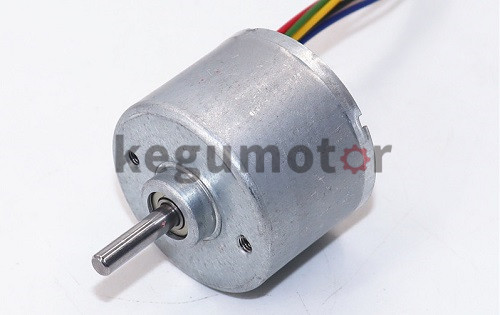

BL3626 BL3626I B3626M OD 36mm Mini BLDC Brushless DC Motor

Desc:

BL3626 BL3626I B3626M OD 36mm brushless dc motor, inner rotor, Built-in driver, control, PWM, cw, ccw rotation, FG speed feedback signal, Low EMC, Low noiseinner rotor, small brushless dc motor, diameter 36mm bldc motor, small bldc motor...

Recommended
Detailed


Specifications:

  • Size: Ø36.0* 26.0mm
  • Built-in driver ( built-in driver Controller with hall sensors)
  • PWM pulse wide speed range
  • Clockwise/counter-clockwise rotation
  • FG speed feedback signal
  • Low EMC
  • Low noise
  • Long life: 10000hrs Min.
  • Over-current protection
  • Over-voltage protection
  • Under-voltage protection
  • OEM and ODM orders are welcome
  • The design can be customized
  • Characters:
    1.Small size dc brushless motor with low speed and big torque
    2.Suitable to small diameter, low noise and big torque application
    3.Can equip with Gear Reducer

    High performance 36MM BLDC brushless dc motor a family of BL3626i,BL3630i,BL3640i,BL3650i,BL3657i

BL3626 application
Home Application: White Goods, Small Appliance, Fanner, Electric Curtain

Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal machine

Business Equipment: Printer, Copier, Projector, Scanner, Cash Register
BL3626i BL3626 B3626M Motor drawing:

BL3626 Data Sheet

Motor Model

Rated

 Voltage

No-load

Speed

No-load

Current

Rated

 speed

Rated

 torque

Rated

 current

Output

power

Stall Torque

Stall Current

VDC r/min A rpm mNm A W mNm A
BL3626-V1 12 6027 0.15 4880 9.8 0.64 4.8 52

2.7

BL3626-V2 18 7435 0.13 6020 9.3 0.50 5.6 49 2.1
BL3626-V3 24 8927 0.11 7230 9.2 0.46 6.8 49 1.9

BL3626-V1                                     12V                                                         BL3626-V3                                24V


Notice: Data in this typical specification sheet are for other certain customers.
