Specifications:
- Size: Ø16.0* 25.0mm
- Built-in driver ( built-in driver Controller with hall sensors)
- PWM pulse wide speed range
- Clockwise/counter-clockwise rotation
- FG speed feedback signal
- Low EMC
- Low noise
- Long life: 10000hrs Min.
- Over-current protection
- Over-voltage protection
- Under-voltage protection
- OEM and ODM orders are welcome
- The design can be customized

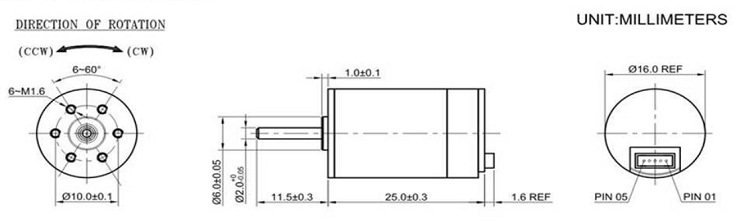

BL1625 drawing
BL1625 data sheet
Motor Model
| Motor Model |
Rated Voltage |
No-load Speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | mA | rpm | g.cm | mA | W | g.cm | A | |
| BL1625-V1 | 6.0 | 9800 | 55 | 7940 | 11.3 | 228 | 0.908 | 58.7 |
0.96 |
| BL1625-V2 | 9.0 | 8020 | 30 | 6256 | 9.1 | 100 | 0.587 | 41.6 | 0.36 |
| BL1625-V3 | 12.0 | 8400 | 23 | 6640 | 9.6 | 86 | 0.655 | 45.8 | 0.32 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
