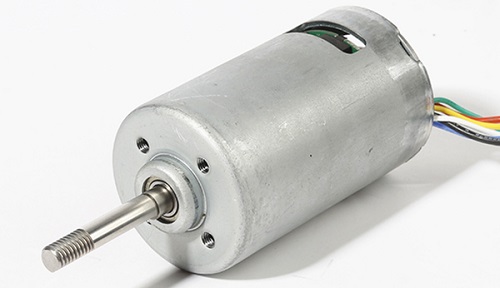

BL5285iBL5285 B5285M OD Diameter 52mm Small Inner Rotor Brushless DC BLDC Motor -Typical Application
Communication Device: Antenna RCU
Automobile Parts: Micro Pump, Switcher
Home Application: White Goods, Small Appliance, Kitchen Appliance,
Smart Home, Micro Actuate
Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump
Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter
Business Equipment: Scanner, Cash Register
Personal Care: Skin Care, Beauty Apparatus
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs
12V 18V 24V 42mm Diameter 5000rpm 5285 BLDC Motor
-
Specification:
-
Size: Ø52.0* 85.0mm
-
Built-in driver(built-in driver Controller with hall sensor)
-
PWM pulse wide speed range
-
Clockwise/counter-clockwise rotation
-
FG speed feedback signal
-
Low EMC
-
Low noise
-
Long life: 20000hrs Min.
-
Over-current protection
-
Over-voltage protection
-
Under-voltage protection
-
OEM and ODM orders are welcome
-
The design can be customized
High performance 52MM BLDC brushless dc motor BL5265I,BL5285i

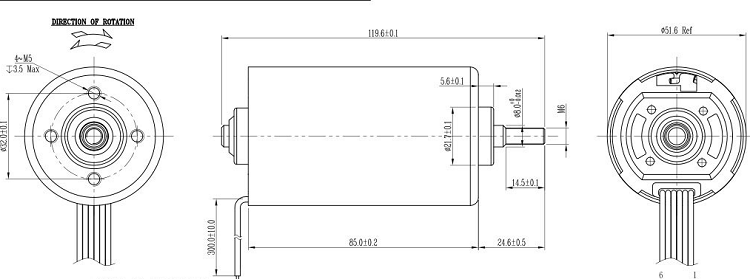

BL5285i BL5285 B5285M Motor drawing：
BL5285 Data Sheet
| Motor Model |
Rated Voltage |
No-load Speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | mNm | A | W | mNm | A | |
| BL5285-V1 | 12 | 2920 | 0.28 | 2190 | 152 | 3.4 | 34.0 | 615 |
12.8 |
| BL5285-V2 | 24 | 4012 | 0.27 | 3429 | 90.7 | 1.56 | 32.6 | 625 | 9.2 |
| BL5285-V3 | 24 | 5800 | 0.39 | 4350 | 203 | 4.5 | 90.0 | 805 | 16.6 |

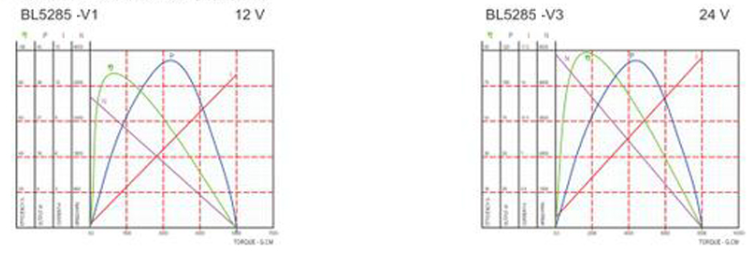

BL5285-V1 12V BL5285-V2 24V
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current,
power and shaft extension feature & dimension can be changed to meet customer specific requirement.
Note: The data in this typical data sheet applies to other specific customers.
The reliability and stability of the product is an important index for evaluating the technical level of the product. To precisely analyze, evaluate and verify the performance of the product.
