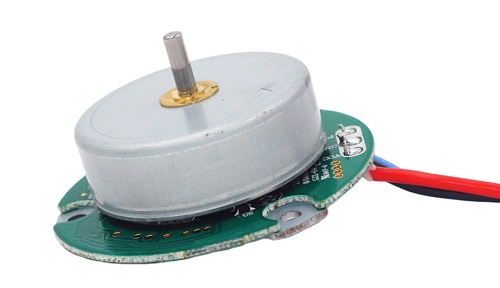

BL3717O BL3717 OD Diameter 37mm Small Out Rotor Brushless DC BLDC Motor -Typical Application
Communication Device: Antenna RCU
Automobile Parts: Micro Pump, Switcher
Home Application: White Goods, Small Appliance, Kitchen Appliance,
Smart Home, Micro Actuate
Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump
Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter
Business Equipment: Scanner, Cash Register
Personal Care: Skin Care, Beauty Apparatus
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs

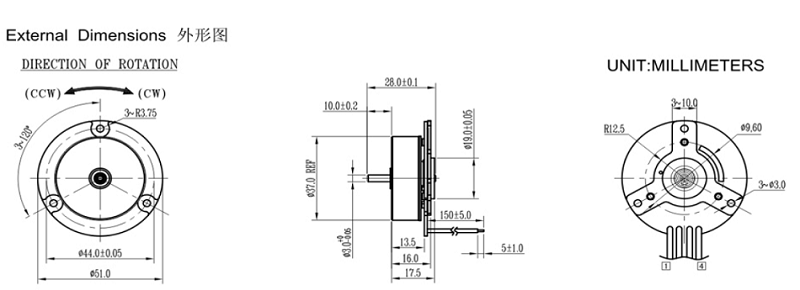

BL3717O BL3717 Outline Drawing:
| Motor Model |
Rated Voltage |
No-load Speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | mNm | A | W | mNm | A | |
| BL3717-V1 | 12 | 11876 | 0.25 | 10332 | 15.7 | 1.60 | 16.3 | 185 |
10.6 |
| BL3717-V2 | 18 | 18020 | 0.29 | 15497 | 17.2 | 1.79 | 26.7 | 123 | 10.98 |
| BL3717-V3 | 24 | 23274 | 0.34 | 20481 | 25.8 | 2.61 | 53.2 | 215 | 19.2 |

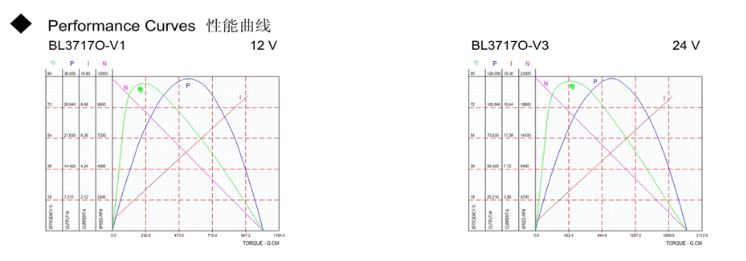

BL3717-V2 12V BL3717-V3 24V
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current,
power and shaft extension feature & dimension can be changed to meet customer specific requirement.
