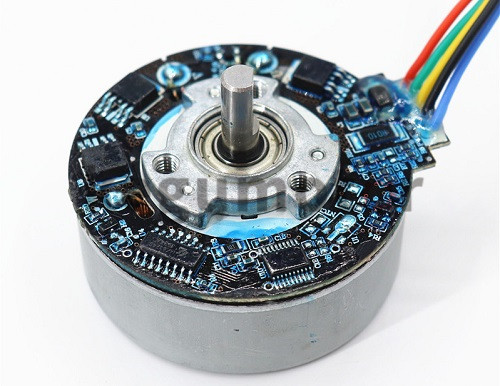

BL5520O BL5520 OD Diameter 55mm Small Out Rotor Brushless DC BLDC Motor -Typical Application
Communication Device: Antenna RCU
Automobile Parts: Micro Pump, Switcher
Home Application: White Goods, Small Appliance, Kitchen Appliance,
Smart Home, Micro Actuate
Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump
Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter
Business Equipment: Scanner, Cash Register
Personal Care: Skin Care, Beauty Apparatus
Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs

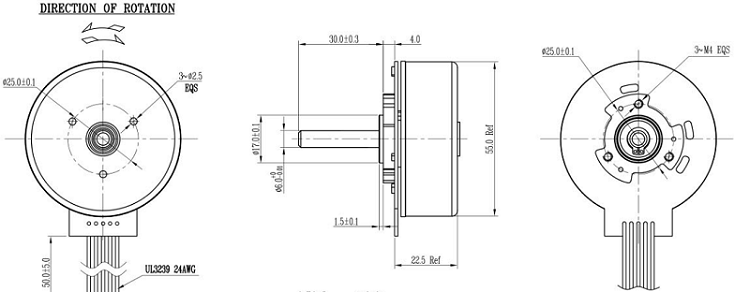

BL5520O BL5520 Outline Drawing:
| Motor Model |
Rated Voltage |
No-load Speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | mNm | A | W | mNm | A | |
| BL5520-V1 | 12 | 3050 | 0.24 | 2657 | 60.7 | 1.63 | 16.2 | 475 | 11.1 |
| BL5520-V2 | 18 | 2758 | 0.17 | 2408 | 71.6 | 1.17 | 17.3 | 565 | 8.06 |
| BL5520-V3 | 24 | 2755 | 0.14 | 2383 | 75.3 | 0.93 | 18.1 | 558 | 5.98 |

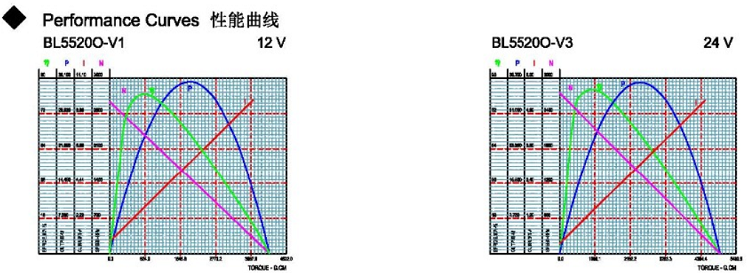

BL5520O-V1 12V BL5520O-V3 24V
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current,
power and shaft extension feature & dimension can be changed to meet customer specific requirement.
