BL5530O BL5530 OD 55mm Mini BLDC Brushless DC Motor_Micro BLDC Gear Motor|Micro DC Planetary Gear Motor|Mini BLDC Motor

BL5530O BL5530 OD Diameter 55mm Small Out Rotor Brushless DC BLDC Motor -Typical Application

Communication Device: Antenna RCU

Automobile Parts: Micro Pump, Switcher

Home Application: White Goods, Small Appliance, Kitchen Appliance,

Smart Home, Micro Actuate

Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump

Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter

Business Equipment: Scanner, Cash Register

Personal Care: Skin Care, Beauty Apparatus

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs

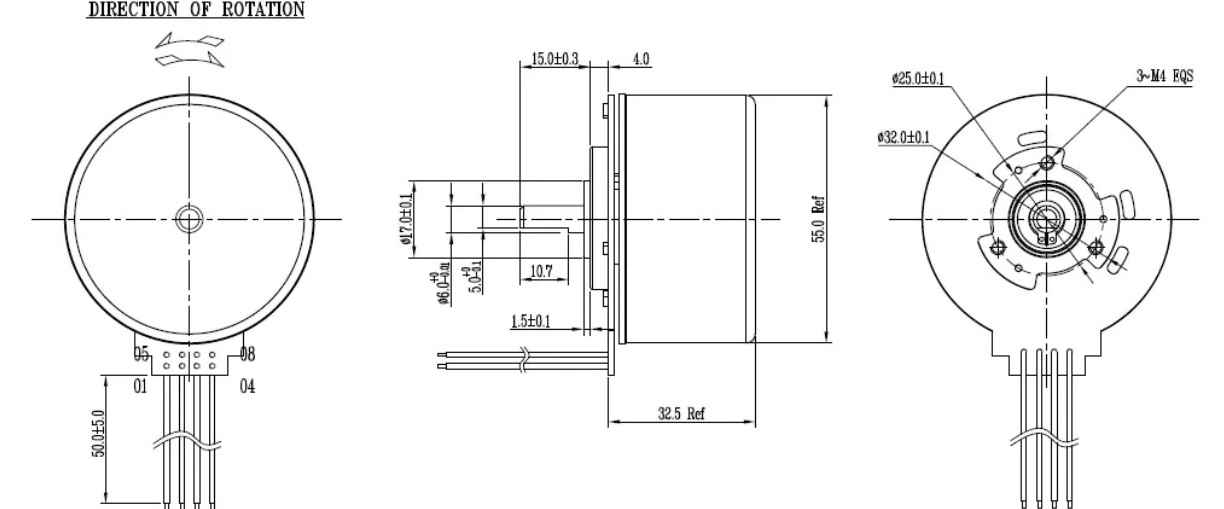

BL5530O BL5530 Outline Drawing:

BL5530O BL5530 Data Sheet

Motor Model	Voltage	No-load Speed	No-load Power	Protect Current	Max Power	Stall Torque	Stall Current
Motor Model	VDC	r/min	W	A	W	mNm	A
BL5530-V1	12	3500	3-4	8-10	60	475	11.1
BL5530-V2	16.8	3500	5-6	8-10	80	565	8.06
BL5530-V3	24	3500	7-8	8-10	100	558	5.98

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current,
power and shaft extension feature & dimension can be changed to meet customer specific requirement.

BL5530O BL5530 OD 55mm Mini BLDC Brushless DC Motor
