BL2430 Specifications:
- Size: Ø24.0* 30.0mm
- Built-in driver ( built-in driver Controller with hall sensors)
- PWM pulse wide speed range
- Clockwise/counter-clockwise rotation
- FG speed feedback signal
- Low EMC
- Low noise
- Long life: 10000hrs Min.
- Over-current protection
- Over-voltage protection
- Under-voltage protection
- OEM and ODM orders are welcome
- The design can be customized
-
Characters:
1.Small size dc brushless motor with low speed and big torque
2.Suitable to small diameter, low noise and big torque application
3.Can equip with Gear Reducer

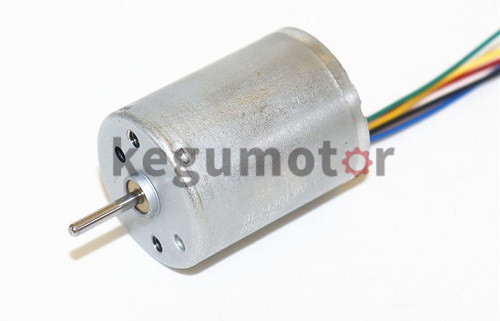

BL2418i and BL2430i are OD 24mm brushless dc motor.
BL2430 Application:
Home Application: White Goods, Small Appliance, Fanner, Electric Curtain
Home Application: White Goods, Small Appliance, Fanner, Electric Curtain
Medical Apparatus: Medical Pump, Blood Pressure Meter, Surgery Tools, Medical Stirrer, centrifugal machine
Business Equipment: Printer, Copier, Projector, Scanner, Cash Register
Personal Care: Hair Dryer, Electric Shaver, Massager

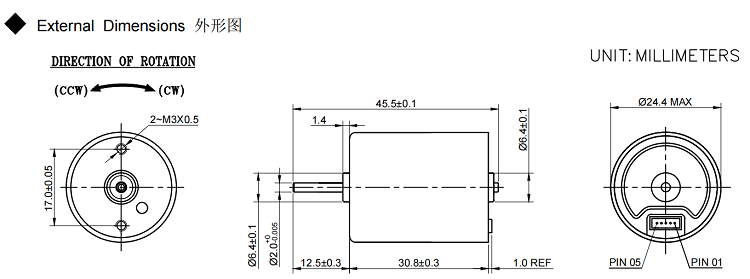

BL2430 drawing
BL2430 data sheet
| Motor Model |
Rated Voltage |
No-load Speed |
No-load Current |
Rated speed |
Rated torque |
Rated current |
Output power |
Stall Torque |
Stall Current |
| VDC | r/min | A | rpm | mNm | A | W | mNm | A | |
| BL2430-V1 | 6.0 | 5380 | 0.23 | 4720 | 3.92 | 0.61 | 1.94 | 13.2 |
1.5 |
| BL2430-V2 | 9.0 | 5390 | 0.11 | 5390 | 9.81 | 0.71 | 3.85 | 23.2 | 1.5 |
| BL2430-V3 | 12.0 | 8010 | 0.17 | 6150 | 9.32 | 0.74 | 6.01 | 23.5 | 1.5 |
| BL2430-V4 | 24.0 | 4570 | 0.05 | 3510 | 6.87 | 0.18 | 2.53 | 29.6 | 0.64 |
| BL2430-V5 | 12.0 | 7380 | 0.12 | 5830 | 5.41 | 0.44 | 3.17 | 25.7 | 1.63 |
| BL2430-V6 | 24.0 | 9737 | 0.09 | 7692 | 6.95 | 0.37 | 5.37 | 33.0 | 1.32 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.

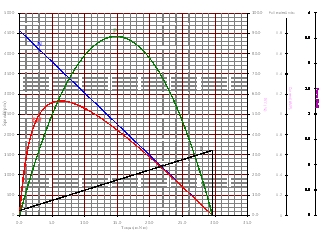

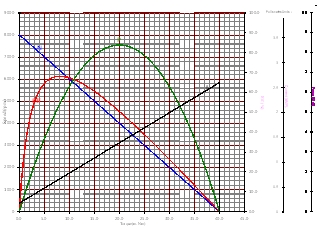

| BL2430-V3 12V | BL2430-V4 24V |
 |
 |
Notice: Data in this typical specification sheet are for other certain customers.
