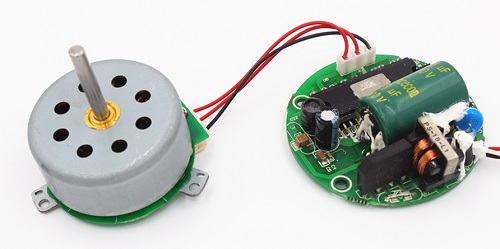

BL4220O BL4220 OD Diameter 42mm Small Out Rotor Brushless DC BLDC Motor -Typical Application

Communication Device: Antenna RCU

Automobile Parts: Micro Pump, Switcher

Home Application: White Goods, Small Appliance, Kitchen Appliance,

Smart Home, Micro Actuate

Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump

Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter

Business Equipment: Scanner, Cash Register

Personal Care: Skin Care, Beauty Apparatus

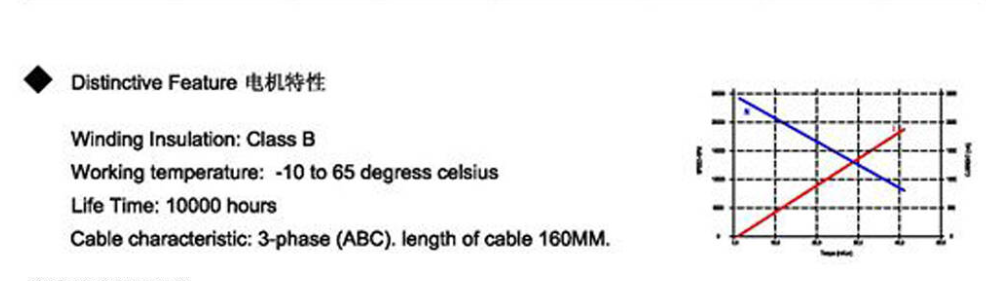

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs

BL4220O BL4220 Outline Drawing:

BL4220O BL4220 Data Sheet

Motor Model	Rated Voltage	No-load Speed	No-load Input W	Rated speed	Rated torque	Output power
Motor Model	V	r/min	A	rpm	mNm	W
BL4220-V1	120VAC	25800	10	18700	35.2	105
BL4220-V2	230VAC	24200	8.8	18500	35.8	106

BL4020

Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current,
power and shaft extension feature & dimension can be changed to meet customer specific requirement.
