BL4235 BL4235I B4235M OD 42mm Mini BLDC Brushless DC Motor

Desc:

BL4235,BL4235I,B4235M OD 42mm brushless dc motor, inner rotor, Built-in driver, control, PWM, cw, ccw rotation, FG speed feedback signal, Low EMC, Low noiseinner rotor, small brushless dc motor, diameter 42mm bldc motor, small bldc motor...

Recommended
Detailed

BL4235i BL4235 B4235M OD Diameter 42mm Small Inner Rotor Brushless DC BLDC Motor -Typical Application

Communication Device: Antenna RCU

Automobile Parts: Micro Pump, Switcher

Home Application: White Goods, Small Appliance, Kitchen Appliance,

Smart Home, Micro Actuate

Medical Apparatus: Medical Pump, Liquid Pump, Gas Pump

Industry Equipment: Micro Pump, Micro Valve, Instrument, Meter

Business Equipment: Scanner, Cash Register

Personal Care: Skin Care, Beauty Apparatus

Characteristic: CW & CCW, Signal function available, Locked rotor protection, Stepless speed regulation, Low noise, Low EMI, Long life 3000-30000hrs



12V 18V 24V  42mm Diameter 5000rpm 4235 BLDC Motor

  • Specification:

  • Size: Ø42.0* 35.0mm

  • Built-in driver(built-in driver Controller with hall sensor)

  • PWM pulse wide speed range

  • Clockwise/counter-clockwise rotation

  • FG speed feedback signal

  • Low EMC

  • Low noise

  • Long life: 20000hrs Min.

  • Over-current protection

  • Over-voltage protection

  • Under-voltage protection

  • OEM and ODM orders are welcome

  • The design can be customized

High performance 42MM BLDC brushless dc motor a family of BL4235i,BL4260i,BL4275i

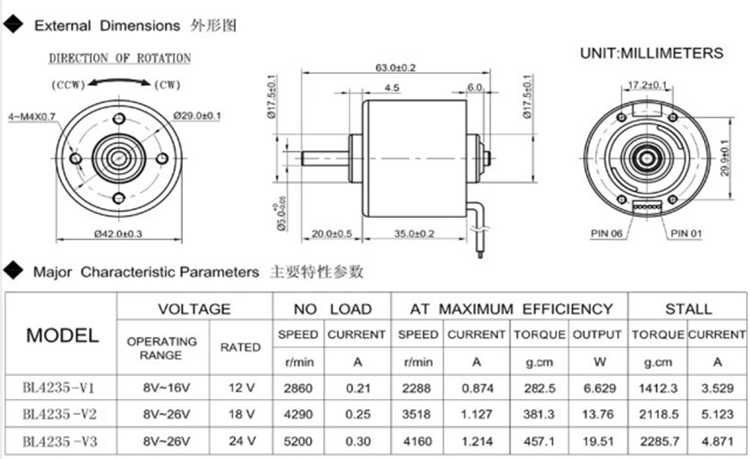

BL4235i BL4235  BL4235M Motor drawing:

BL4235 Data Sheet

Motor Model

Rated

 Voltage

No-load

Speed

No-load

Current

Rated

 speed

Rated

 torque

Rated

 current

Output

power

Stall Torque

Stall Current

VDC r/min A rpm mNm A W mNm A
BL4235-V1 12 2860 0.21 2288 28.7 0.87 6.63 144

3.5

BL4235-V2 18 4290 0.25 3518 38.8 1.13 13.7 216 5.1
BL4235-V3 24 5200 0.30 4160 46.6 1.21 19.5 233 4.8
BL4235-V4 24 6370 0.30 5100 35.0 1.17 18.7 175 2.5
BL4235-V5 24 5539 0.25 4393 55.0 1.41 25.3 264 2.5
BL4235-V6 24 8455 0.33 7580 40.0 1.64 31.7 386 2.5

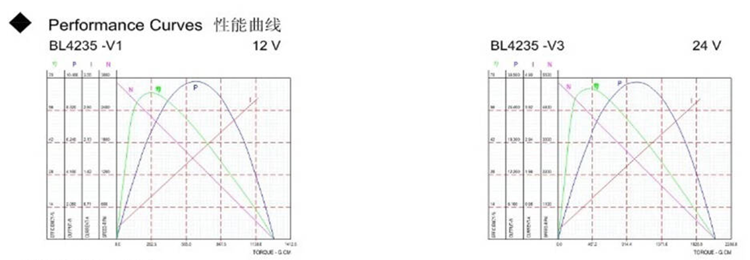

BL4235-V1                                     12V                                                         BL4235-V3                                24V

Notice: Data in this typical specification sheet are for other certain customers.

Note: The data in this typical data sheet applies to other specific customers.

The reliability and stability of the product is an important index for evaluating the technical level of the product. To precisely analyze, evaluate and verify the performance of the product.

Company presentation

Shen Zhen Ke Gu Technology Co., Ltd. is a private high-tech enterprise integrating research, development, production and sales of various kinds of miniature DC motors, precision gears and micro gears of systems. We also offer drive solutions for customers in the design, manufacture and assembly of components. The company strictly implements the IS9001: 2015 management system.

Products are often used in the automotive industry, in communication devices, in the smart home, in medical devices, in intelligent security, in household appliances, in western kitchen appliances, in machines and electronics as well as in other high-quality transmission structures. Products are exported to more than 50 countries and regions at home abroad
