Product description

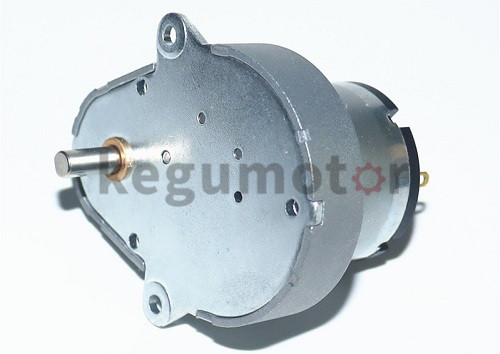

Model:KG-48E520 48mm 24v micro metal gearmotor
Diameter:48mm
Length:22.5mm+gearbox
Characters:
1.Small size dc gear motor with low speed and big torque
2.48mm gear motor provide 0.1Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application
4.Dc Gear motors can match connector
5.Reduction Ratio: 640、800、1200、1800、2700
Gearbox features:
1. It adopts all metal instrument precision spur gear tower structure, which has large torque, long life and stable operation.
2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.
3. Meet EU environmental protection standards.
4. Appearance and structural design strive to be thin, short, compact, and lightweight.
5. Make the modulus of the gear to a minimum of 0.5mm within a limited volume.
Motor Specifications:
1. Rated Voltage: 3.0-24V
2. No Load Speed: 6-1000 rpm
3. No Load Current: 60 mA
4. Rated Load Speed: 5-950 rpm
5. Rated Load Current: 620 mA

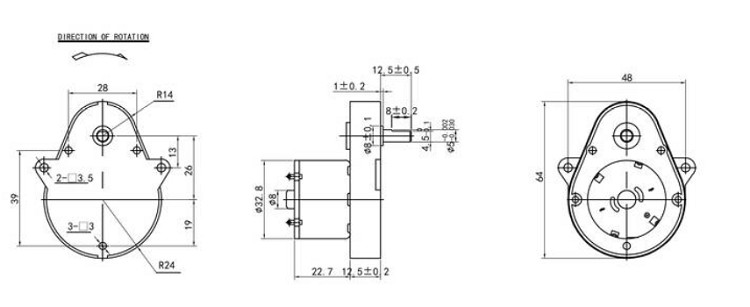

Drawing of 48mm 12v micro metal gearmotor
Performance of 48mm 12v micro metal gearmotor
|
MODEL |
VOLTAGE |
NO- LOAD |
AT MAXIMUM EFFICIENCY |
STALL TORQUE |
RATIO |
LENGTH OF GEAR BOX(L) |
MATCH THE MOTOR |
LENGTH OF MOTOR(L1) |
||||||
|
SPEED |
CURRENT |
SPEED |
CURRENT |
TORQUE |
TORQUE |
CURRENT |
||||||||
|
V |
r/min |
A |
r/min |
A |
mN.m |
Kg.cm |
mN.m |
Kg.cm |
A |
|
mm |
|
mm |
|
|
KG-48E520-30 |
12 |
288 |
0.095 |
223 |
0.35 |
77.8 |
0.79 |
311.3 |
3.17 |
1.27 |
30 |
12.4 |
KRF/K-520 |
23 |
|
KG-48E520-56 |
12 |
154 |
0.095 |
120 |
0.35 |
98.2 |
1.00 |
392.8 |
4.01 |
1.27 |
56 |
12.4 |
KRF/K-520 |
23 |
|
KG-48E520-75 |
12 |
115 |
0.095 |
89 |
0.35 |
102.5 |
1.05 |
410.0 |
4.18 |
1.27 |
75 |
12.4 |
KRF/K-520 |
23 |
|
KG-48E520-112 |
12 |
77 |
0.095 |
60 |
0.35 |
154.8 |
1.58 |
541.8 |
5.52 |
1.27 |
112 |
12.4 |
KRF/K-520 |
23 |
|
KG-48E520-160 |
12 |
54 |
0.095 |
42 |
0.35 |
305.3 |
3.11 |
933.2 |
9.52 |
1.27 |
160 |
12.4 |
KRF/K-520 |
23 |
|
KG-48E520-216 |
12 |
40 |
0.095 |
31 |
0.35 |
550.2 |
5.61 |
1375.5 |
14.03 |
1.27 |
216 |
12.4 |
KRF/K-520 |
23 |
|
KG-48E520-427 |
12 |
20 |
0.095 |
16 |
0.35 |
850.6 |
8.67 |
1701.2 |
17.35 |
1.27 |
427 |
12.4 |
KRF/K-520 |
23 |
|
KG-48E520-538 |
12 |
16 |
0.095 |
12 |
0.35 |
995.2 |
10.15 |
1990.4 |
20.30 |
1.27 |
538 |
12.4 |
KRF/K-520 |
23 |
Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
