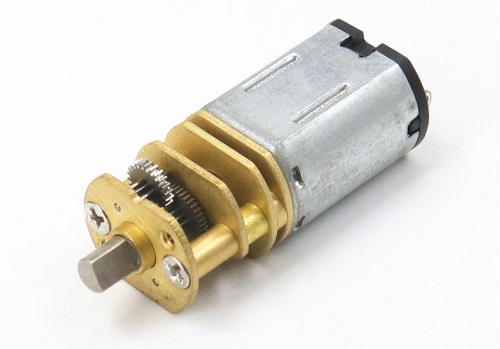

Product description 10mm micro metal dc gearmotor

Diameter:10mm

Length:21.8mm

Characters:
1.Small size dc gearmotor with low speed and big torque
2.10mm gearmotor provide 0.01Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application
4.Reduction Ratio: 100、250

Gearbox features:

1. It adopts all metal instrument precision spur gear tower structure, which has large torque, long life and stable operation.

2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.

3. Meet EU environmental protection standards.

4. Appearance and structural design strive to be thin, short, compact, and lightweight.

5. Make the modulus of the gear to a minimum of 0.15mm within a limited volume.

Motor Specifications:

1. Rated Voltage: 3.0-12V

2. No Load Speed: 25-250 rpm

3. No Load Current: 50 mA
4. Rated Load Speed: 21-229 rpm

5. Rated Load Current: 100 mA

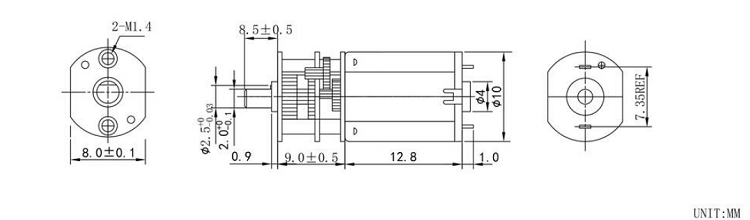

Drawing of 10mm micro metal dc gearmotor

Data Sheet

MODEL	VOLTAGE		NO LOAD		AT MAXIMUM EFFICIENCY					STALL
	OPERATING RANGE	Rated	SPEED	CURRENT	SPEED	CURRENT	TORQUE		OUTPUT	TORQUE		CURRENT
	OPERATING RANGE	Rated	r/min	A	r/min	A	mN.m	g.cm	W	mN.m	g.cm	A
GM10-M10VA-06205-250	3.0-5.0v	4.5V	89	0.05	64.1	0.128	25.4	258.7	0.17	50	500	0.33
GM10F-M10VA-06220-250	2.0-4.0v	3.0V	45	0.06	30	0.11	48	500	0.082	93.8	957	0.22
GM10F-M20VA-06180-250	2.0-4.0v	3.0V	41	0.025	29.9	0.067	25.3	258.4	0.079	93.8	957	0.18

Remarks:Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
