48mm 12v micro metal gearmotor

Desc:

48mm 12v micro metal gearmotor,KG-48E500 12v 48mm metal gear motor Product Model:metal spur gear motor OD: 48mm Gearbox:metal Rotation: cw&ccw...

Recommended
Detailed

Product description

Model:KG-48E500  48mm 12v micro metal gearmotor

Diameter:48mm

Length:19.5mm+gearbox

Characters:
1.Small size dc gear motor with low speed and big torque
2.48mm gear motor provide 0.1Nm torque and more reliable
3.Suitable to small diameter, low noise and big toque application

4.Dc Gear motors can match connector
5.Reduction Ratio: 640、800、1200、1800、2700

Gearbox features:

1. It adopts all metal instrument precision spur gear tower structure, which has large torque, long life and stable operation.

2, Using precious metal brush DC motor, low noise, stable performance, low power consumption, can be driven by solar cells.

3. Meet EU environmental protection standards.

4. Appearance and structural design strive to be thin, short, compact, and lightweight.

5. Make the modulus of the gear to a minimum of 0.5mm within a limited volume.

Motor Specifications:

1. Rated Voltage: 3.0-24V

2. No Load Speed: 6-1000 rpm

3. No Load Current: 60 mA
4. Rated Load Speed: 5-950 rpm

5. Rated Load Current: 620 mA

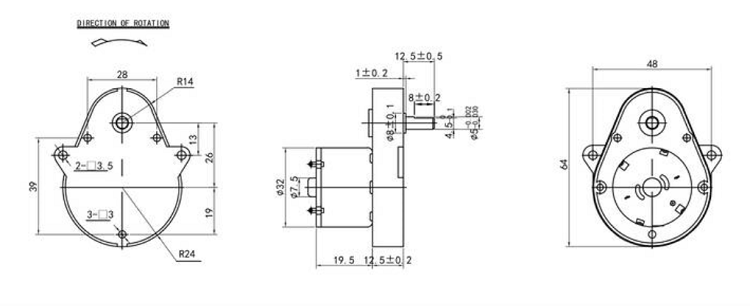

Drawing of 48mm 12v micro metal gearmotor

Performance of 48mm 12v micro metal gearmotor
Gear ratio and length L of gearbox


 Number of stages

2

3

4

5

6

7


Gear ratio

12.4

25

80.64

300

600

640

20

30

86.4

340

800

800



45

90

453

900

1200



60

100

504

933

2700





128



1050







153



1200







225



1350











1687



Length of gearbox L(mm)

12.5

19.5

SPECIFICATIONS:



MODEL



V

 NO LOAD

RATED LOAD

STALL

 SPEED
rpm

 CURRENT
A

SPEED
rpm

 CURRENT
A

TORQUE
Nm

 OUTPUT
W

TORQUE
Nm

CURRENT
A

KG-48E500-12.4

6

298

0.05

246

0.15

0.014

0.36

0.08

0.63

KG-48E500-100

6

35

0.05

26

0.18

0.196

0.53

0.68

0.6

KG-48E500-153

3

17.5

0.07

15

0.13

0.098

0.15

0.63

0.65

KG-48E500-225

6

16

0.06

12.5

0.18

0.39

0.5

1.17

0.6

KG-48E500-300

6

9

0.05

7

0.09

0.196

0.14

1.0

0.35

KG-48E500-453

6

6

0.06

4.5

0.12

0.58

0.28

2.94

0.35

KG-48E500-600

9

6.5

0.06

5.5

0.12

0.49

0.28

2.84

0.52

KG-48E500-900

6

4

0.06

3.4

0.13

0.68

0.2

3.92

0.63

KG-48E500-1200

12

2.5

0.05

2

0.08

1.0

0.22

5

0.2

KG-48E500-1350

3

2

0.07

1.7

0.13

0.73

0.13

4.5

0.65

KG-48E500-1687

3

1

0.06

0.8

0.09

0.73

0.06

3.5

0.35

Voltage, Rated torque, Speed, Current, Power and Shaft size can be customized as requirement.
